HRP-1 - Mount Angle Setting - Setup

Mount Angle Setting

1

1. Connect to the robot with the iPendant and selct Jogging iPendant.

2. Turn the Remote Jog Enable switch ON.

3. Select the FN Function key.

4. Select 0 -- NEXT --

2

1. Select 8 START MODE

2. Select CTRL (Controlled) Start

3. The iPendant page will then prompt you to Cycle Power the robot. Wait at least 3 minutes before powering on the robot.

4.  Log back into the iPendant and select Jogging iPendant.

3

1.  Verify that the Tool Setup page displays the correct values and edit if needed, then press ENTER.

  1. Robot No. :    Fxxxxxx
  2. KAREL Prog in select menu:    YES
  3. Remote Device:    UserPanel
  4. Intrinsically safe TP:    NO

2. Select MENU and then select 9 MAINTENANCE.

3. Select MANUAL.

4. Enter 1 and press ENTER.

4

Important: This step is for Fanuc Robots that are new or have the newest Fanuc software only.

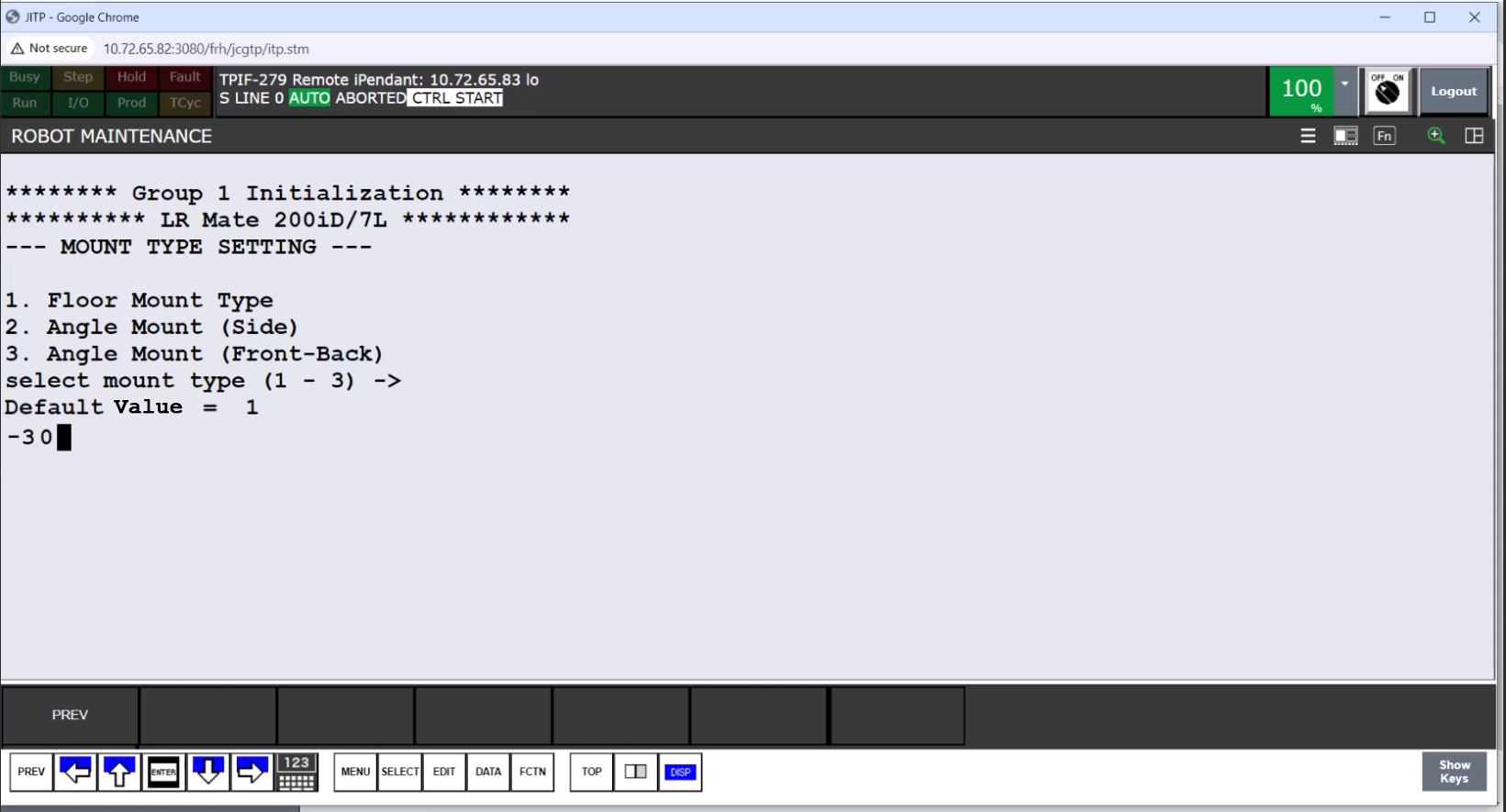

1. Enter the Mount Angle that the robot is mounted and press ENTER.

  • For VF/VM and ST machines the Mount Angle Setting is -30.
  • For UMC and DT/DM machines the Mount Angle Setting is 0.

5

1. Enter the Mount Angle that the robot is mounted and press ENTER
Note: If this is a new Funuc Robot or has the newest Fanuc software, Mount Angle has already been applied in the previous step.

  • For VF/VM and ST machines the Mount Angle Setting is -30.
  • For UMC and DT/DM machines the Mount Angle Setting is 0.

2. Enter 7 for the Payload setting and press ENTER.

3. Enter 1 for the J1 MOTION RANGE SETTING and press ENTER.

4. Enter 1 for Built-in batteries and press ENTER.

6

1. Select the Fn key.

2. Select 1 START (COLD).

3. The iPendant page will then prompt you to Cycle Power the robot. Wait at least 3 minutes before powering on the robot.
