Spindles

Product Image

DOWNLOAD AN INSTANT CUSTOM QUOTE FOR ANY HAAS MACHINE

GET QUOTE


Spindles

Engineered and Manufactured in California – by Haas

Recently Updated

Haas Spindles – Made on Haas Machines


We manufacture all spindles in-house using Haas machines. Mill and lathe spindles are roughed-out on Haas lathes in robotically tended cells. Final hard turning and threading are also completed on Haas machines.

Recently Updated

See For Yourself

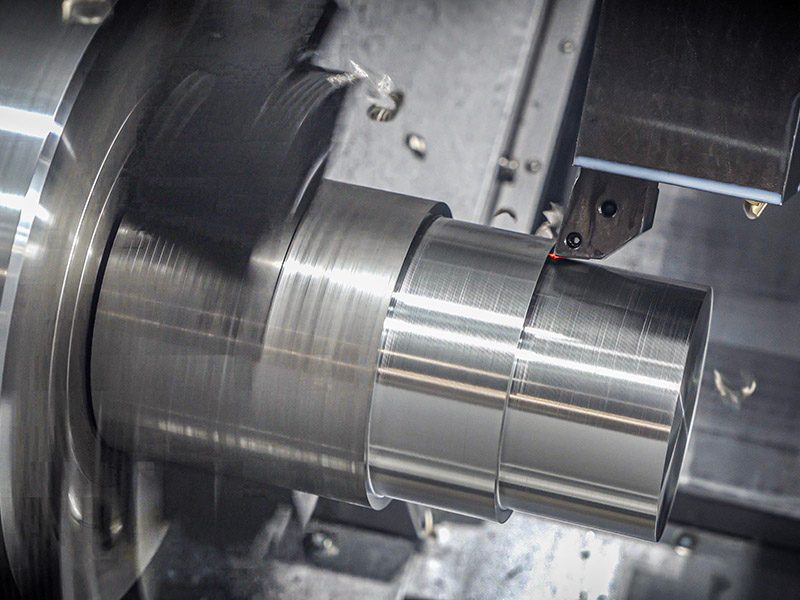

See how our lathe spindles are machined on Haas ST-40 turning centers in one of the longest-running robotic cells in the Haas factory.

Recently Updated

Not Just Bearings and Shafts, but Electronics, Too


Spindles are only as good as the electronics that drive them. We meticulously engineer our drive systems to provide the absolute best performance and reliability possible for our machine tools. At Haas, vertical integration isn’t just a buzzword – it’s a way of life.

Powerful Vector Spindle Drives – The Haas-designed vector spindle drive uses closed-loop, digital servo technology to provide precise speed control and peak performance under heavy cutting loads, resulting in the fastest, most powerful spindles ever. Our vector drives allow you to push the spindle to 150 percent of the motor’s continuous power rating for 15 minutes, and to 200 percent for 3 minutes. That’s more performance headroom than most other drives on the market.

On-The-Fly Wye-Delta Switching – Many Haas machines feature a dual-winding motor – wye and delta – with an electronic switch to change between the two windings. By selecting the best winding for low-rpm cutting and the best winding for high-rpm cutting, we provide higher torque over a wider rpm range. And our on-the-fly wye/delta switching maximizes acceleration/deceleration rates for more chip making and less waiting.

Synchronized Tapping – The Haas high-performance spindle is synchronized with the machine’s Z-axis motion to provide synchronized tapping. This eliminates the need for expensive floating tap holders, and prevents lead-thread distortion and start-thread pullout. The tap can retract up to nine times faster than it went in to reduce cycle times, and an automated tap recovery feature can easily back the tap out of a hole in the event of an interruption. (Standard on all machines except GR, Mini Mill, Toolroom Mill, and Toolroom Lathe.)

  • Vertical Mills
  • Horizontal Mills
  • Turning Centers
Recently Updated

Spindle Construction

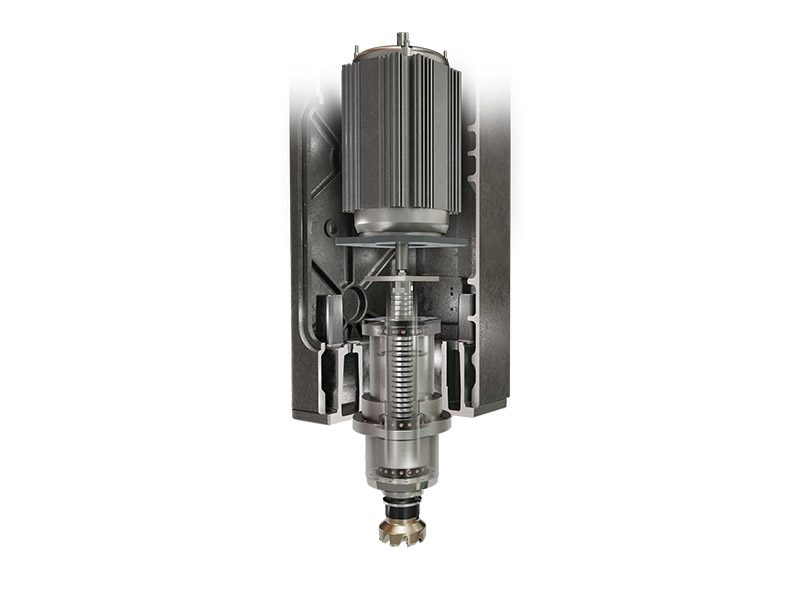

The advanced design of our spindles provides high axial-thrust capability, yet generates minimal heat. The front and rear bores of the housing and the OD of the spindle are finished in one operation. This guarantees perfect alignment between the bores and ODs, thus reducing bearing heat. We use only top-quality, high-precision bearings throughout our spindles, with the two forward bearings separated by a large spacer to enhance radial stability – enabling heavy cuts in hard materials. To ensure long life, each spindle is pressurized to prevent coolant contamination, and lubricated automatically to ensure precise lubrication and long bearing life.

Belt Drive

This system features a Haas-built cartridge spindle that is driven by the motor via belt. This provides a good combination of torque and rpm for a wide selection of machining operations. It is a great overall value.

Inline Drive

The standard configuration for most Haas 40-taper VMCs is an inline direct-drive spindle that is coupled directly to the motor to provide excellent surface finishes and greater thermal stability. The inline spindle is available in 8100-rpm to 20,000-rpm.

Gear Drive

The Haas geared-head spindle provides increased low-end torque for heavy cutting, while retaining the ability to run up to 10,000 rpm for high-speed machining. It is standard on 50-taper machines, and optional on most 40-taper machines.

4000-rpm Spindle

  • 4k Speed
  • 40 Taper
  • 7.5 hp Power
  • Belt Drive

Standard spindle for Toolroom Mills

    CNY ONLY

6000-rpm Spindle

  • 6k Speed
  • 40 Taper
  • 7.5 hp Power
  • Belt Drive

Standard spindle for P-model Toolroom Mills

    CNY ONLY

7500-rpm Spindle

  • 7.5k Speed
  • 50 Taper
  • 30 hp Power
  • Gearbox Drive

Standard spindle for 50-taper VF and EC Series

    CNY ONLY

High-Performance 7500-rpm Spindle

  • 7.5k Speed
  • 50 Taper
  • 60 hp Power
  • Gearbox Drive

High-power spindle for 50-taper VF and EC Series

    CNY ONLY

8100-rpm Spindle

  • 8.1k Speed
  • 40 Taper
  • 15 hp Power
  • Belt Drive

Standard spindle for Gantry Series

    CNY ONLY

8100-rpm Spindle

  • 8.1k Speed
  • 40 Taper
  • 30 hp Power
  • Inline Drive

Standard spindle for 40-taper VF and EC Series

    CNY ONLY

8100-rpm Spindle GB

  • 8.1k Speed
  • 40 Taper
  • 20 hp Power
  • Gearbox Drive

Gear-driven spindle for VF Series

    CNY ONLY

8100-rpm Spindle, HSK-A63, Grease Packed

  • 8.1k Speed
  • HSK-A63 Taper
  • 15 hp Power
  • Belt Drive

Standard spindle for the VMT-750

    CNY ONLY

10,000-rpm Spindle

  • 10k Speed
  • 30 Taper
  • 15 hp Power
  • Inline Drive

Standard spindle for Drill/Tap Series

    CNY ONLY

10,000-rpm Spindle

  • 10k Speed
  • 40 Taper
  • 15 hp Power
  • Belt Drive

Standard spindle for Super Mini Mills

    CNY ONLY

10,000-rpm Grease-Packed Spindle

  • 10k Speed
  • 40 Taper
  • Belt Drive

Optional spindle for MM, TM, and GR Series

    CNY ONLY

10,000-rpm Inline Grease-Packed Spindle

  • 10k Speed
  • 40 Taper
  • Inline Drive

Optional spindle for 40-taper VF Series

    CNY ONLY

10,000-rpm Spindle

  • 10k Speed
  • 40 Taper
  • 15 hp Power
  • Inline Drive

Standard spindle for Drill/Mill Series

    CNY ONLY

10,000-rpm Spindle

  • 10k Speed
  • 40 Taper
  • 30 hp Power
  • Inline Drive

High-speed spindle for 40-taper VF and EC Series

    CNY ONLY

10,000-rpm Spindle GB

  • 10k Speed
  • 40 Taper
  • 20 hp Power
  • Gearbox Drive

High-speed gear-driven spindle for VF Series

    CNY ONLY

High-Performance 10,000-rpm Spindle

  • 10k Speed
  • 50 Taper
  • 60 hp Power
  • Gearbox Drive

High-power, high-speed spindle for 50-taper VF and EC Series

    CNY ONLY

12,000-rpm Spindle

  • 12k Speed
  • 30 Taper
  • 15 hp Power
  • Inline Drive

High-performance spindle for Drill/Tap Series

    CNY ONLY

12,000-rpm Spindle

  • 12k Speed
  • 40 Taper
  • 15 hp Power
  • Inline Drive

High-performance spindle for Drill/Mill Series

    CNY ONLY

12,000-rpm Spindle

  • 12k Speed
  • 40 Taper
  • 30 hp Power
  • Inline Drive

High-speed spindle for 40-taper vertical and horizontal mills

    CNY ONLY

12,000-rpm Spindle, HSK-A63

  • 12k Speed
  • HSK-A 63 Taper
  • 30 hp Power
  • Inline Drive

HSK spindle for UMC, VF, and VM series

    CNY ONLY

15,000-rpm Spindle

  • 15k Speed
  • 30 Taper
  • 15 hp Power
  • Inline Drive

High-performance spindle for Drill/Tap Series

    CNY ONLY

15,000-rpm Spindle

  • 15k Speed
  • 40 Taper
  • 15 hp Power
  • Belt Drive

High-speed spindle for Super Mini Mills

    CNY ONLY

15,000-rpm Spindle

  • 15k Speed
  • 40 Taper
  • 15 hp Power
  • Inline Drive

High-performance spindle for Drill/Mill Series

    CNY ONLY

15,000-rpm Spindle

  • 15k Speed
  • 40 Taper
  • 30 hp Power
  • Inline Drive

High-speed spindle for 40-taper vertical and horizontal mills

    CNY ONLY

15,000-rpm Spindle, HSK-A63

  • 15k Speed
  • HSK-A 63 Taper
  • 30 hp Power
  • Inline Drive

HSK spindle for UMC, VF, and VM series

    CNY ONLY

20,000-rpm Spindle, HSK-A63

  • 20k Speed
  • HSK-A63 Taper
  • 24 hp Power
  • Integral Motor Drive

Standard HSK spindle for the VR Series

    CNY ONLY

20,000-rpm Spindle, HSK-63F

  • 20k Speed
  • HSK-63F Taper
  • 16 hp Power
  • Integral Motor Drive

Standard HSK spindle for the GM-2-5AX

    CNY ONLY

20,000-rpm Spindle

  • 20k Speed
  • 30 Taper
  • 15 hp Power
  • Inline Drive

High-speed spindle for Drill/Tap Series

    CNY ONLY

30,000-rpm Spindle

  • 30k Speed
  • 30 Taper
  • 20 hp Power
  • Belt Drive

High-speed 30-taper spindle for VF Series and Mold Machines

    CNY ONLY

30,000-rpm Spindle

  • 30k Speed
  • 20 Taper
  • 5 hp Power
  • Belt Drive

Standard Spindle for Compact Mills

    CNY ONLY

50,000-rpm Spindle

  • 50k Speed
  • 20 Taper
  • 5 hp Power
  • Belt Drive

High-speed spindle for Compact Mills

    CNY ONLY
Recently Updated

Spindle Construction


The advanced design of our spindles provides high axial-thrust capability, yet generates minimal heat. The front and rear bores of the housing and the OD of the spindle are finished in one operation. This guarantees perfect alignment between the bores and ODs, thus reducing bearing heat. We use only top-quality, high-precision bearings throughout our spindles, with the two forward bearings separated by a large spacer to enhance radial stability – enabling heavy cuts in hard materials. To ensure long life, each spindle is pressurized to prevent coolant contamination, and lubricated automatically to ensure precise lubrication and long bearing life.

7500-rpm Spindle

  • 7.5k Speed
  • 50 Taper
  • 30 hp Power
  • Gearbox Drive

Standard spindle for 50-taper VF and EC Series

    CNY ONLY

High-Performance 7500-rpm Spindle

  • 7.5k Speed
  • 50 Taper
  • 60 hp Power
  • Gearbox Drive

High-power spindle for 50-taper VF and EC Series

    CNY ONLY

8100-rpm Spindle

  • 8.1k Speed
  • 40 Taper
  • 30 hp Power
  • Inline Drive

Standard spindle for 40-taper VF and EC Series

    CNY ONLY

10,000-rpm Spindle

  • 10k Speed
  • 40 Taper
  • 30 hp Power
  • Inline Drive

High-speed spindle for 40-taper VF and EC Series

    CNY ONLY

High-Performance 10,000-rpm Spindle

  • 10k Speed
  • 50 Taper
  • 60 hp Power
  • Gearbox Drive

High-power, high-speed spindle for 50-taper VF and EC Series

    CNY ONLY

12,000-rpm Spindle

  • 12k Speed
  • 40 Taper
  • 30 hp Power
  • Inline Drive

High-speed spindle for 40-taper vertical and horizontal mills

    CNY ONLY

12,000-rpm Spindle, HSK-A63

  • 12k Speed
  • HSK-A 63 Taper
  • 30 hp Power
  • Inline Drive

HSK spindle for UMC, VF, and VM series

    CNY ONLY

15,000-rpm Spindle

  • 15k Speed
  • 40 Taper
  • 30 hp Power
  • Inline Drive

High-speed spindle for 40-taper vertical and horizontal mills

    CNY ONLY

15,000-rpm Spindle, HSK-A63

  • 15k Speed
  • HSK-A 63 Taper
  • 30 hp Power
  • Inline Drive

HSK spindle for UMC, VF, and VM series

    CNY ONLY
Recently Updated

Spindle Construction


The advanced design of our spindles provides high axial-thrust capability, yet generates minimal heat. The front and rear bores of the housing and the OD of the spindle are finished in one operation. This guarantees perfect alignment between the bores and ODs, thus reducing bearing heat. We use only top-quality, high-precision bearings throughout our spindles, with the two forward bearings separated by a large spacer to enhance radial stability – enabling heavy cuts in hard materials. To ensure long life, each spindle is pressurized to prevent coolant contamination, and lubricated automatically to ensure precise lubrication and long bearing life.

Extra-Performance Option

  • 55 hp POWER
  • Gearbox DRIVE

High-power spindle for the ST-40/L and ST-45/L

    CNY ONLY

1000-rpm Spindle

  • 1k speed
  • A1-20 nose
  • 55 hp power
  • Gearbox drive

Standard spindle for the ST-55

    CNY ONLY

1200-rpm Spindle

  • 1.2k speed
  • A2-15 nose
  • 55 hp power
  • Gearbox drive

Standard spindle for the ST-50

    CNY ONLY

1400-rpm Spindle

  • 1.4k speed
  • A2-11 Nose
  • 40 hp Power
  • Gearbox drive

Standard spindle for the ST-45/L

    CNY ONLY

1800-rpm Spindle, A2-5

  • 1.8k speed
  • A2-5 nose
  • 10 hp power
  • Belt drive

Standard spindle for the Toolroom Lathe Series

    CNY ONLY

1800-rpm Spindle, A2-6

  • 1.8k speed
  • A2-6 nose
  • 10 hp power
  • Belt drive

Optional spindle for the Toolroom Lathe Series

    CNY ONLY

2400-rpm Spindle

  • 2.4k SPEED
  • A2-8 NOSE
  • 40 hp POWER
  • Gearbox DRIVE

Standard spindle for the ST-40/L

    CNY ONLY

2400-rpm Spindle

  • 2.4k speed
  • A2-8 nose
  • 40 hp power
  • Gearbox drive

Gear-driven spindle for the ST-35/Y

    CNY ONLY

4500-rpm Main Spindle, 3" Bore, 10" Chuck

  • 4.5k speed
  • A2-6 nose
  • 30 hp power
  • Belt drive

Big-bore spindle for the DS-30Y

    CNY ONLY

3000-rpm Spindle, A2-5

  • 3k speed
  • A2-5 nose
  • 10 hp power
  • Belt drive

Optional spindle for the Toolroom Lathe Series

    CNY ONLY

3000-rpm Spindle, A2-6

  • 3k speed
  • A2-6 nose
  • 10 hp power
  • Belt drive

Optional spindle for the Toolroom Lathe Series

    CNY ONLY

3200-rpm Spindle

  • 3.2k speed
  • A2-8 nose
  • 40 hp power
  • Belt drive

Standard spindle for the ST-35/Y

    CNY ONLY

3400-rpm Spindle – Belt Drive

  • 3.4k speed
  • A2-6 nose
  • 30 hp power
  • Belt drive

Standard spindle for the ST-25/Y and ST-30/Y

    CNY ONLY

3400-rpm Spindle – Gear Drive

  • 3.4k speed
  • A2-6 nose
  • 30 hp power
  • Gearbox drive

Gear-driven spindle for the ST-30/Y

    CNY ONLY

4000-rpm Spindle

  • 4k speed
  • A2-6 nose
  • 20 hp power
  • Belt drive

Standard spindle for the ST-15/Y, ST-20/Y

    CNY ONLY

4500-rpm Spindle

  • 4.5k speed
  • A2-6 Nose
  • 30 hp power
  • Belt drive

High-speed spindle for the ST-30/Y

    CNY ONLY

4800-rpm Secondary Spindle

  • 4.8k speed
  • A2-5 nose
  • 20 hp power
  • Belt drive

Standard secondary-spindle for the DS-30Y

    CNY ONLY

5000-rpm Spindle

  • 5k speed
  • A2-6 nose
  • 30 hp power
  • Belt drive

High-speed spindle for the ST-20/Y

    CNY ONLY

6000-rpm Spindle

  • 6k speed
  • A2-5 nose
  • 15 hp power
  • Belt drive

Standard spindle for the ST-10/Y

    CNY ONLY

6000-rpm Spindle

  • 6k speed
  • 5C nose
  • 5 hp power
  • Belt drive

Standard spindle for the Compact Lathe

    CNY ONLY

A2-5 Finishing Sub-Spindle

  • A2-5 Spindle Nose
  • 5.3" Chuck Size
  • 6000 rpm Speed

Available for ST-10 through ST-25 models

    CNY ONLY

A2-5 Finishing Sub-Spindle, 6.5" Chuck

  • A2-5 Spindle Nose
  • 6.5" Chuck Size
  • 4100 rpm Speed

Available for ST-30 and ST-35 models

    CNY ONLY

What machine will you design today?

Build & Price

Your new Haas machine tool is waiting.

Shop Now
FIND DISTRIBUTOR
Haas Logo

美元价格不包括关税、报关费用、保险费、增值税及运费。
USD prices DO NOT include customs duty, customs fees, insurance, VAT, or freight.

人民币价格包含关税、报关费用、货运保险和增值税, 但不包括运费。
CNY prices include customs duty, customs fees, insurance, and VAT. DOES NOT include freight.

Haas Delivered Price

This price includes shipping cost, export and import duties, insurance, and any other expenses incurred during shipping to a location in France agreed with you as a buyer. No other mandatory costs can be added to the delivery of a Haas CNC Product.

KEEP UP WITH THE LATEST HAAS TIPS AND TECHNOLOGY...

Sign up now!

  • Service & Support
  • Owners
  • Request Service
  • Operator Manuals
  • Haas Parts
  • Rotary Repair Request
  • Shopping Tools
  • Build & Price a New Haas
  • Available Inventory
  • The Haas Price List
  • CNCA Financing
  • Rotary Fit Chart
  • About Haas
  • Careers
  • Certifications & Safety
  • Contact Us
  • History
  • Terms & Conditions
  • Haas Tooling Terms & Conditions
  • Privacy
  • Warranty
  • Haas Community
  • Haas Certification Program
  • Haas Motorsports
  • Gene Haas Foundation
  • HTEC Network
  • Events
  • Join the Conversation
  • Facebook
  • Twitter
  • Flickr
  • YouTube
  • LinkedIn
  • Instagram
© 2021 Haas Automation, Inc – CNC Machine Tools

2800 Sturgis Rd., Oxnard, CA 93030 / Toll Free: 800-331-6746
Phone: 805-278-1800 / Fax: 805-278-2255

Cookie Notice

We use cookies to improve your user experience. Our Cookie Notice describes which cookies we use, why we use them, and how you can find more information about them. Please confirm you consent to us using analytics cookies. If you do not consent, you may still use our website with a reduced user experience.

Manage Settings

Cookie Notice

We use cookies to improve your user experience. Our Cookie Notice describes which cookies we use, why we use them, and how you can find more information about them. Please confirm you consent to us using analytics cookies. If you do not consent, you may still use our website with a reduced user experience.

Functional Cookies

Analytics Cookies
