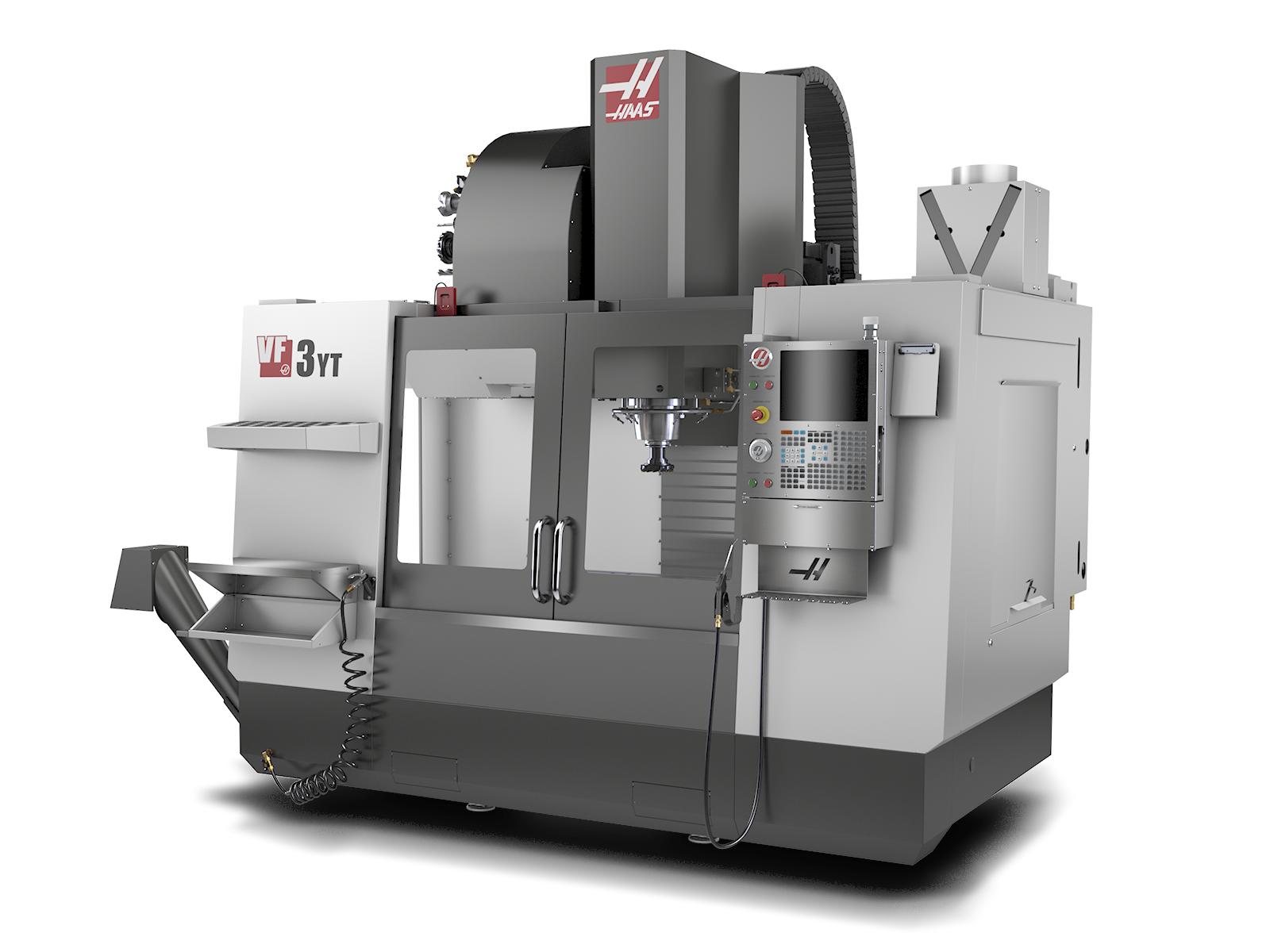

VF-3YT/50


CNC Vertical Mill with 40" x 26" x 25" travels

The VF-3YT/50 provides the heavy cutting capacity of a 50-taper machine in a mid-size footprint. It has 6" more Y-axis travel than the standard VF-3. A larger base casting provides the extended Y-axis travel, yet the machine’s footprint is only slightly larger than the standard VF-3. Heavy cast-iron construction yields the rigidity and stability necessary for heavy cutting, and the wide T-slot table provides plenty of room for fixturing and large parts.

  • 50-taper spindle with 2-speed gearbox
  • Extended Y-axis travel
  • Ideal for tougher materials and larger-diameter cutting tools
  • 50 Taper
  • 3 Axis
  • 7.5k RPM
  • 30+1 Tool Capacity

美元价格不包括关税、报关费用、保险费、增值税及运费。
USD prices DO NOT include customs duty, customs fees, insurance, VAT, or freight.

人民币价格包含关税、报关费用、货运保险和增值税, 但不包括运费。
CNY prices include customs duty, customs fees, insurance, and VAT. DOES NOT include freight.

* V Model Machines are only available in CNY pricing
Compare Machines
BUILD & PRICE
Contact Distributor

AVAILABLE OPTIONS

TECHNICAL DOCUMENTS

VIDEOS

RELATED PRODUCTS

* Not all options are compatible with each other. Some options may require the purchase of additional options, or may include additional options at no charge. Please use our Build-&-Price tool to determine option compatibility, and configure your machine.

ANSWERS TO YOUR CONCERNS ABOUT ADDING A HAAS ROBOT: It won’t take up much space, cost a ton of money, or take weeks to integrate.

SPACE EFFICIENT

COST EFFECTIVE

EASY TO INTEGRATE

EASY TO LEARN

Travels S.A.E METRIC
X Axis 40.00 in 1016 mm
Y Axis 26.00 in 660 mm
Z Axis 25.00 in 635 mm
Spindle Nose to Table (~ max) 32.9 in 836 mm
Spindle Nose to Table (~ min) 7.9 in 201 mm
Spindle S.A.E METRIC
Max Rating 30.0 hp 22.4 kW
Max Speed 7500 rpm 7500 rpm
Max Torque 340.0 ft-lbf @ 700 rpm 460.0 Nm @ 700 rpm
Drive System 2-Speed Gearbox 2-Speed Gearbox
Taper CT or BT 50 CT or BT 50
Bearing Lubrication Air / Oil Injection Air / Oil Injection
Cooling Liquid Cooled Liquid Cooled
Table S.A.E METRIC
Length 54.0 in 1372 mm
Width 24.0 in 610 mm
T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm
T-Slot Center Distance 3.15 in 80 mm
Number of Std T-Slots 7 7
Max Weight on Table (evenly distributed) 4000 lb 1814 kg
Feedrates S.A.E METRIC
Max Cutting 500 ipm 12.7 m/min
Rapids on X 710 ipm 18.0 m/min
Rapids on Y 710 ipm 18.0 m/min
Rapids on Z 710 ipm 18.0 m/min
Axis Motors S.A.E METRIC
Max Thrust X 3400 lbf 15124 N
Max Thrust Y 4100 lbf 18238 N
Max Thrust Z 5600 lbf 24910 N
Tool Changer S.A.E METRIC
Type SMTC SMTC
Capacity 30+1 30+1
Max Tool Diameter (full) 4.0 in 102 mm
Max Tool Diameter (adjacent empty) 7.0 in 178 mm
Max Tool Length (from gage line) 16 in 406 mm
Max Tool Weight 30.0 lb 13.6 kg
Tool-to-Tool (avg) 4.20 s 4.20 s
Chip-to-Chip (avg) 6.30 s 6.30 s
General S.A.E METRIC
Coolant Capacity 55 gal 208 L
Air Requirements S.A.E METRIC
Air Required† 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in 3/8 in
Coupler (Air) 3/8 in 3/8 in
Air Pressure Min 80 psi 5.5 bar
Electrical Specification S.A.E METRIC
Spindle Speed 7500 rpm 7500 rpm
Drive System 2-Speed Gearbox 2-Speed Gearbox
Spindle Power 30.0 hp 22.4 kW
Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
Full Load Amps (3 Phase) - Low 70 A 70 A
Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
Full Load Amps (3 Phase) - High* 35 A 35 A
Dimensions - Shipping S.A.E METRIC
Domestic Pallet 156.0 in x 102.0 in x 121.0 in 397 cm x 260 cm x 307 cm
Export Crate 156.0 in x 102.0 in x 127.0 in 397 cm x 260 cm x 323 cm
Weight 16500 lb 7485.0 kg

*Haas machines are designed to operate on 220 VAC (200-240 VAC) power. An optional internal high-voltage transformer (380 - 480 VAC) is available for all models, except the Desktop Machines, CL-1, CM-1, and SR Series routers. This optional high-voltage internal transformer is not field installable; it must be ordered with the machine.

Haas machines destined for Europe and the UK are configured with an internal high-voltage non-isolated transformer to operate on 400 VAC, except the Desktop Machines, CL-1, CM-1, and SR Series routers.

ATTENTION! Optional high-performance spindles may have a higher power requirement than the standard spindle. However, if the spindle horsepower (kW) does not change, the power requirement remains the same. Verify the power requirement before running power for your machine.

† Air consumption on 40-taper DC Series machines may be higher, when Through-Tool Air Blast (TAB) is activated.



HAAS ROTARY HAAS MACHINE ROTARY FIT TYPE WARNING
TH450 VF-3YT/50 POSITIVE FIT
HA2TS VF-3YT/50 POSITIVE FIT
HA5C VF-3YT/50 POSITIVE FIT
HA5C2 VF-3YT/50 POSITIVE FIT
HA5C3 VF-3YT/50 POSITIVE FIT
HA5C4 VF-3YT/50 POSITIVE FIT
HA5CS VF-3YT/50 POSITIVE FIT
HRC160 VF-3YT/50 POSITIVE FIT
HRC210 VF-3YT/50 POSITIVE FIT
HRT160 VF-3YT/50 POSITIVE FIT
HRT160-2 VF-3YT/50 POSITIVE FIT
HRT160SP VF-3YT/50 POSITIVE FIT
HRT160SS VF-3YT/50 POSITIVE FIT
HRT210 VF-3YT/50 POSITIVE FIT
HRT210-2 VF-3YT/50 POSITIVE FIT
HRT210M VF-3YT/50 ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HRT210SP VF-3YT/50 POSITIVE FIT
HRT310 VF-3YT/50 POSITIVE FIT
HRT310SP VF-3YT/50 POSITIVE FIT
HRT450 VF-3YT/50 ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
HRTA5 VF-3YT/50 POSITIVE FIT
HRTA6 VF-3YT/50 POSITIVE FIT
T5C VF-3YT/50 POSITIVE FIT
T5C2 VF-3YT/50 POSITIVE FIT
T5C3 VF-3YT/50 POSITIVE FIT
T5C4 VF-3YT/50 POSITIVE FIT
TR160 VF-3YT/50 POSITIVE FIT
TR160-2 VF-3YT/50 POSITIVE FIT
TR200Y VF-3YT/50 ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TR210 VF-3YT/50 POSITIVE FIT
TR310 VF-3YT/50 POSITIVE FIT
TRT100 VF-3YT/50 ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
TRT160 VF-3YT/50 POSITIVE FIT
TRT210 VF-3YT/50 POSITIVE FIT
TRT70 VF-3YT/50 POSITIVE FIT
HRT210HT VF-3YT/50 POSITIVE FIT
HRT210SS VF-3YT/50 POSITIVE FIT
TH240 VF-3YT/50 POSITIVE FIT
HA5C-T VF-3YT/50 POSITIVE FIT
HA5C3-T VF-3YT/50 POSITIVE FIT
HA5C4-T VF-3YT/50 POSITIVE FIT
TRT310 VF-3YT/50 POSITIVE FIT
HRT310SS VF-3YT/50 POSITIVE FIT
HA5C2-T VF-3YT/50 POSITIVE FIT
LT350 VF-3YT/50 POSITIVE FIT
LT260 VF-3YT/50 POSITIVE FIT
