ST-40S Short-Bed | 15" Chuck | High-Performance Turning

{{=tableHeader}}
Model	Serial#	Options

AVAILABLE OPTIONS

TECHNICAL DOCUMENTS

VIDEOS

LARGE-FRAME CAPACITY – SHORT-BED FOOTPRINT

✓  X-axis travel: 20" (508 mm)
✓  Max part swing: 35.5" (902 mm)
✓  Max turning diameter: 30" (762 mm)
✓  Available BMT75 turret with live tooling
✓  Available auto door for automation

✓  FEA-optimized castings
✓ Large turning capacity, with smaller footprint
✓  Improved ergonomics for everyday operation
✓ Increased wedge stance for heavy-duty performance
✓  Improved chip evacuation

Standard Features

Available Options

Y-AXIS MODEL

ST-40Y

Y-Axis CNC Lathe with 27.5" x 44" max capacity and 4.0" bar capacity

15" Chuck Size
4.0" Bar Capacity
2.4k RPM
40 hp Power

Starting at US$229,995

Learn More Build & Price

LARGER SPINDLE BORE & CHUCK

ST-45

CNC Lathe with 30" x 44" max capacity and 7.0" bore

18" (opt) Chuck Size
7.0" Bar Capacity
1.4k RPM
40 hp Power

Starting at US$178,995

Learn More Build & Price

LARGER WORK ENVELOPE & LARGER SPINDLE BORE

ST-45L

CNC Lathe with 30" x 80" max capacity and 7.0" bore

18" (opt) Chuck Size
7.0" Bar Capacity
1.4k RPM
40 hp Power

Starting at US$244,995

Learn More Build & Price

Capacities	S.A.E	METRIC
Chuck Size	15.0 in	381 mm
Max Part Swing	35.5 in	902 mm
Max Cutting Diameter (with BOT turret)	30.00 in	762 mm
Max Cutting Diameter (with BMT75 turret)	27.50 in	699 mm
Max Cutting Length (varies with workholding)	28.0 in	711 mm
Bar Capacity	4.00 in	102 mm

Travels	S.A.E	METRIC
X Axis	20.00 in	508 mm
Z Axis	28.00 in	711 mm

Feedrates	S.A.E	METRIC
Rapids on X	710 ipm	18.0 m/min
Rapids on Z	710 ipm	18.0 m/min

Axis Motors	S.A.E	METRIC
Max Thrust X	5500 lbf	24465 N
Max Thrust Z	9000 lbf	40034 N

Spindle	S.A.E	METRIC
Spindle Nose	A2-8	A2-8
Drive System	2-Speed Gearbox	2-Speed Gearbox
Max Rating	40.0 hp	29.8 kW
Max Speed	2400 rpm	2400 rpm
Max Torque	1400.0 ft-lbf @ 150 rpm	1898.0 Nm @ 150 rpm
Spindle Bore ø	4.62 in	117.3 mm

XP Option	S.A.E	METRIC
Drive System	2-Speed Gearbox	2-Speed Gearbox
Max Rating	55.0 hp	41.0 kW
Max Speed	2400 rpm	2400 rpm
Max Torque	2100.0 ft-lbf @ 150 rpm	2847.0 Nm @ 150 rpm
Input AC Voltage (3 Phase) - Low	220 VAC	220 VAC
Full Load Amps (3 Phase) - Low	105 A	105 A
Input AC Voltage (3 Phase) - High*	440 VAC	440 VAC
Full Load Amps (3 Phase) - High*	53 A	53 A

Tailstock	S.A.E	METRIC
Taper	MT5	MT5
Travel	42.0 in	1,067 mm
Max Thrust (Acme)	3,000 lbf	13,345 N
Min Thrust (Acme)	100 lbf	445 N

Turret	S.A.E	METRIC
Number of Tools	12-Station BOT	12-Station BOT
OD vs ID Tools	Any Combination (will vary with turret)	Any Combination (will vary with turret)
Boring Bar Rear Clearance (from back of turret )	4.50 in	114.0 mm
Tooling	BOT	BOT

General	S.A.E	METRIC
Coolant Capacity	95 gal	360 L

Air Requirements	S.A.E	METRIC
Air Required†	4 scfm @ 100 psi	113 L/min @ 6.9 bar
Inline Air Hose	3/8 in	3/8 in
Coupler (Air)	3/8 in	3/8 in
Air Pressure Min	80 psi	5.5 bar

Electrical Specification	S.A.E	METRIC
Spindle Speed	2400 rpm	2400 rpm
Drive System	2-Speed Gearbox	2-Speed Gearbox
Spindle Power	40.0 hp	29.8 kW
Input AC Voltage (3 Phase) - Low	220 VAC	220 VAC
Full Load Amps (3 Phase) - Low	70 A	70 A
Input AC Voltage (3 Phase) - High*	440 VAC	440 VAC
Full Load Amps (3 Phase) - High*	35 A	35 A

Dimensions - Shipping	S.A.E	METRIC
Domestic Pallet	216.5 in x 94.5 in x 116.0 in	550 cm x 240 cm x 295 cm
Export Crate	216.5 in x 95.0 in x 120.0 in	550 cm x 241 cm x 305 cm
Weight	20400 lb	9253.0 kg

*Haas machines are designed to operate on 220 VAC (200-240 VAC) power. An optional internal high-voltage transformer (380 - 480 VAC) is available for all models, except the Desktop Machines, CL-1, CM-1, and SR Series routers. This optional high-voltage internal transformer is not field installable; it must be ordered with the machine.

Haas machines destined for Europe and the UK are configured with an internal high-voltage non-isolated transformer to operate on 400 VAC, except the Desktop Machines, CL-1, CM-1, and SR Series routers.

ATTENTION! Optional high-performance spindles may have a higher power requirement than the standard spindle. However, if the spindle horsepower (kW) does not change, the power requirement remains the same. Verify the power requirement before running power for your machine.

† Air consumption on 40-taper DC Series machines may be higher, when Through-Tool Air Blast (TAB) is activated.

ST-40S

ST-40S Short-Bed Lathe

See Available Stock

Current Lead Time

Filters

Upgraded Options

Upgraded Options

Upgraded Options

Upgraded Options

Spindles

Turrets & Live Tooling

Probing

Chip & Coolant Management

The Haas Control

Product Options

Tooling & Fixturing

Workholding

Shipping

Warranty

Automation

Chip Removal

Coolant Tank

Coolant & Air Delivery

Coolant Accessory

Hardware Options

Software Options

Memory

Transformer

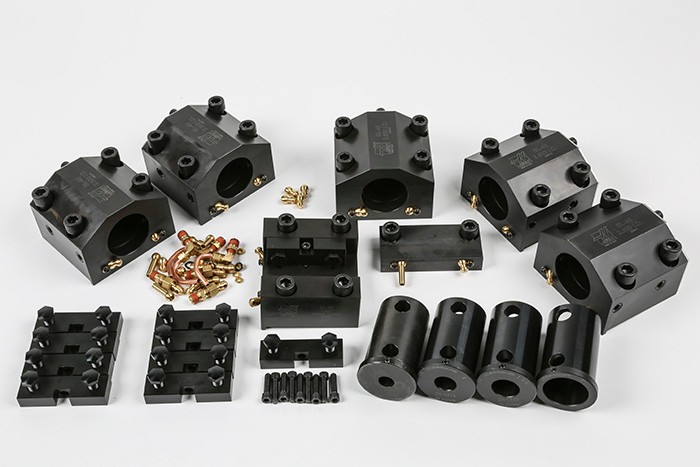

BOT Tooling
