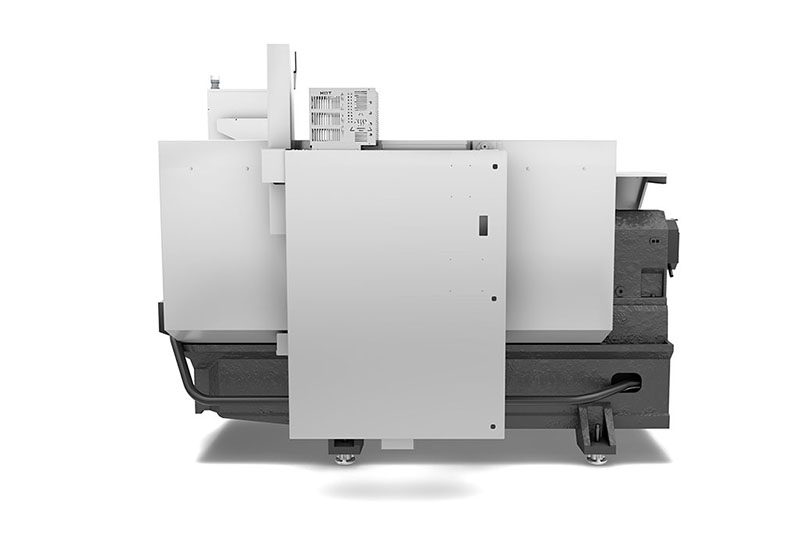

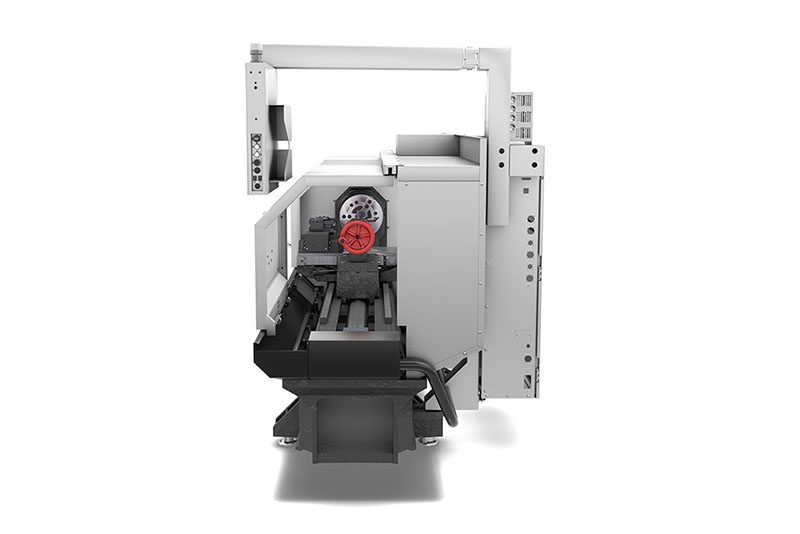

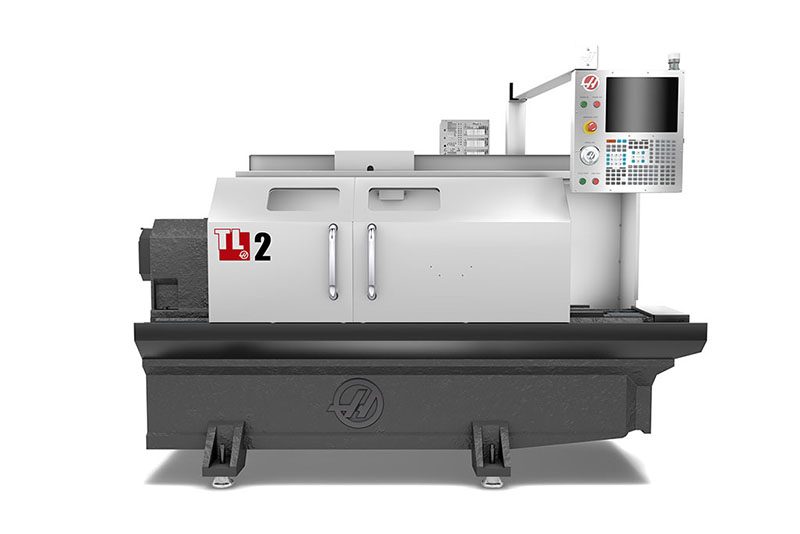

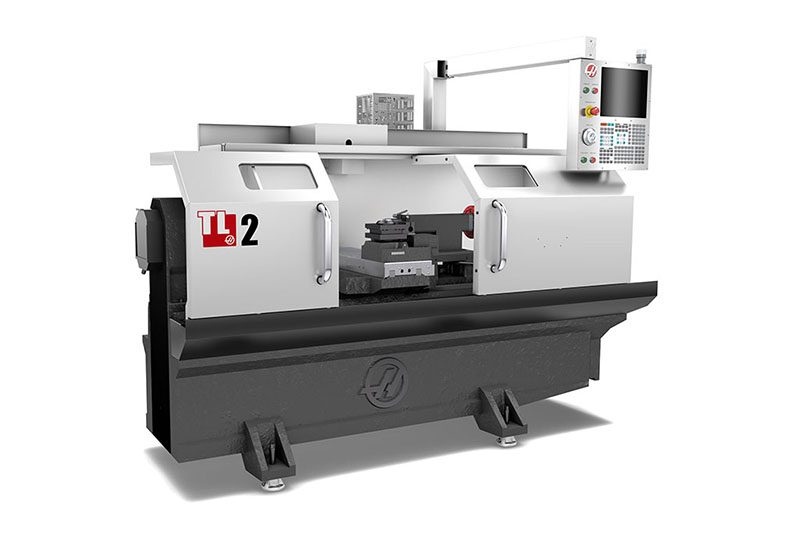

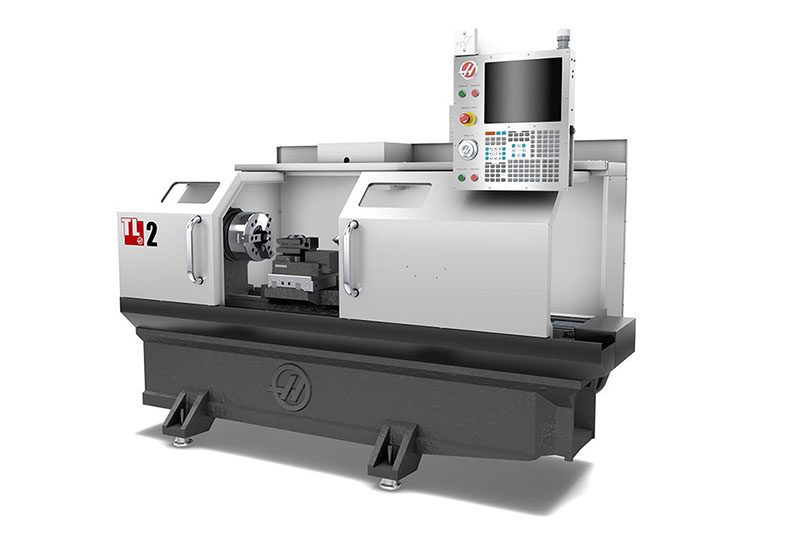

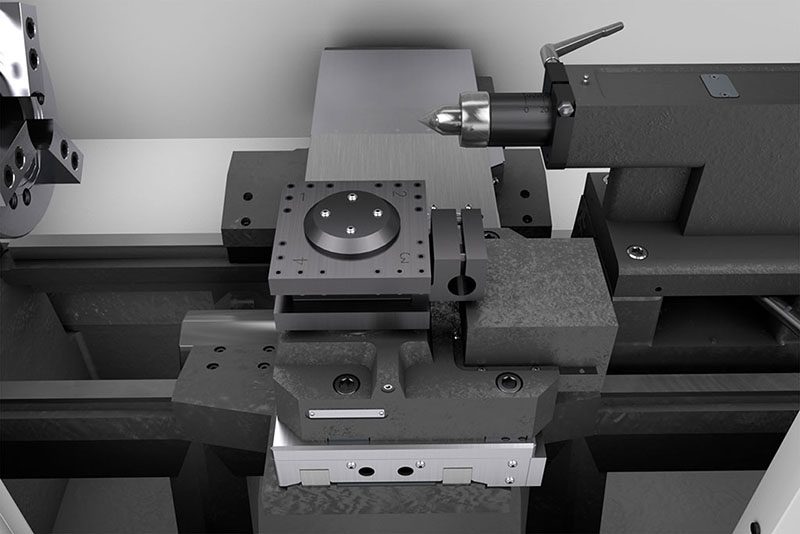

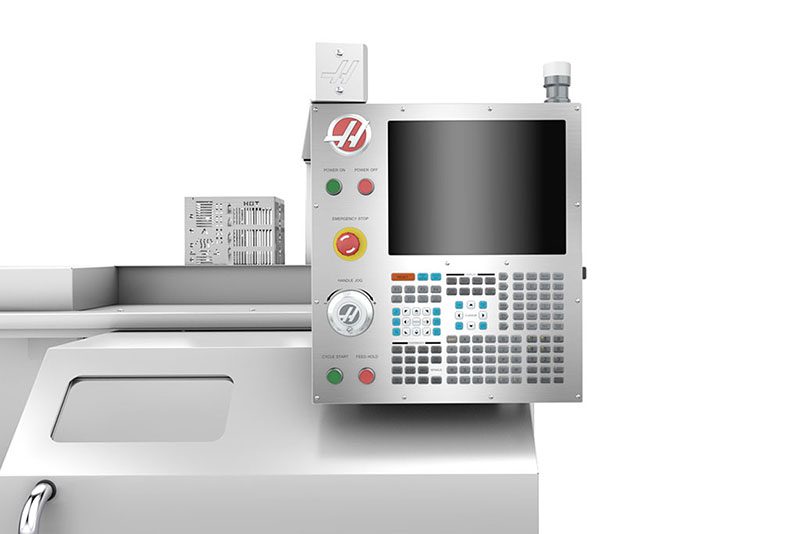

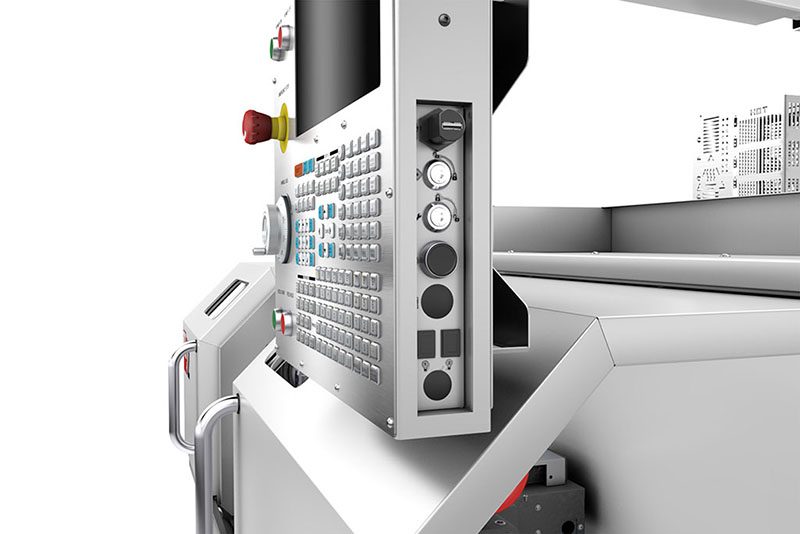

TL-2

{{=tableHeader}}
Model	Serial#	Options

AVAILABLE OPTIONS

TECHNICAL DOCUMENTS

VIDEOS

Electronic Handwheels

The Redesigned Toolroom Lathe

Display Pictures or Videos

Troubleshoot G71 & G72 Cycles

SMALLER WORK ENVELOPE

TL-1

CNC Toolroom Lathe with 16" x 30" max capacity

A2-5 Nose Chuck Size
2.3" Bar Capacity
1.8k RPM
10 hp Power

Learn More Build & Price

HIGHER PRODUCTION

ST-10

CNC Lathe with 12" x 16" max capacity and 1.75" bar capacity

6.5" Chuck Size
1.75" Bar Capacity
6k RPM
15 hp Power

Learn More Build & Price

MORE POWER & LARGER WORK ENVELOPE

ST-20

CNC Lathe with 13" x 22.5" max capacity and 2.5" bar capacity

8.3" Chuck Size
2.5" Bar Capacity
4k RPM
20 hp Power

Learn More Build & Price

Swing Diameter	S.A.E	METRIC
Over Front Apron	20.0 in	508 mm
Over Cross Slide	11.0 in	279 mm

Capacities	S.A.E	METRIC
Chuck (optional)	8.0 in	203 mm
Max Cutting Diameter (with tool post)	16.0 in	406 mm
Max Cutting Diameter (with 4-station turret)	8.0 in	203.0 mm
Max Cutting Length (with tool post)	48.0 in	1,219 mm
Max Cutting Length (with 8-station turret)	1.65 in	42.0 mm
Between Centers	48.0 in	1219 mm

Travels	S.A.E	METRIC
X Axis	8.00 in	203 mm
Z Axis	48.00 in	1219 mm

Feedrates	S.A.E	METRIC
Rapids on X	450 ipm	11.4 m/min
Rapids on Z	450 ipm	11.4 m/min

Axis Motors	S.A.E	METRIC
Max Thrust X	3894 lbf	17321 N
Max Thrust Z	1947 lbf	8661 N

Spindle	S.A.E	METRIC
Spindle Nose	A2-5	A2-5
Drive System	Direct Speed, Belt Drive	Direct Speed, Belt Drive
Max Rating	10.0 hp	7.5 kW
Max Speed	1800 rpm	1800 rpm
Max Torque	108.0 ft-lbf @ 355 rpm	146.0 Nm @ 355 rpm
Spindle Bore ø	2.30 in	58.0 mm

Air Requirements	S.A.E	METRIC
Inline Air Hose	3/8 in	3/8 in
Coupler (Air)	3/8 in	3/8 in
Air Pressure Min	80 psi	5.5 bar

Electrical Specification	S.A.E	METRIC
Spindle Speed	1800 rpm	1800 rpm
Drive System	Direct Speed, Belt Drive	Direct Speed, Belt Drive
Spindle Power	10.0 hp	7.5 kW
Input AC Voltage (1 Phase)	220 VAC	220 VAC
Full Load Amps (1 Phase)	40 A	40 A
Input AC Voltage (3 Phase) - Low	220 VAC	220 VAC
Full Load Amps (3 Phase) - Low	25 A	25 A
Input AC Voltage (3 Phase) - High*	440 VAC	440 VAC
Full Load Amps (3 Phase) - High*	13 A	13 A

Dimensions - Shipping	S.A.E	METRIC
Domestic Pallet	108.5 in x 68.5 in x 83.0 in	276 cm x 174 cm x 211 cm
Export Pallet	108.5 in x 68.5 in x 83.0 in	276 cm x 174 cm x 211 cm
Weight	4480 lb	2032.0 kg
Domestic Pallet w/Conveyor	135 in x 70 in x 83 in	342 cm x 178 cm x 211 cm
Export Pallet w/Conveyor	135 in x 70 in x 83 in	342 cm x 178 cm x 211 cm
Weight w/Conveyor	5380 lb	2440 kg

*Haas machines are designed to operate on 220 VAC (200-240 VAC) power. An optional internal high-voltage transformer (380 - 480 VAC) is available for all models, except the Desktop Machines, CL-1, CM-1, and SR Series routers. This optional high-voltage internal transformer is not field installable; it must be ordered with the machine.

Haas machines destined for Europe and the UK are configured with an internal high-voltage non-isolated transformer to operate on 400 VAC, except the Desktop Machines, CL-1, CM-1, and SR Series routers.

ATTENTION! Optional high-performance spindles may have a higher power requirement than the standard spindle. However, if the spindle horsepower (kW) does not change, the power requirement remains the same. Verify the power requirement before running power for your machine.

† Air consumption on 40-taper DC Series machines may be higher, when Through-Tool Air Blast (TAB) is activated.
