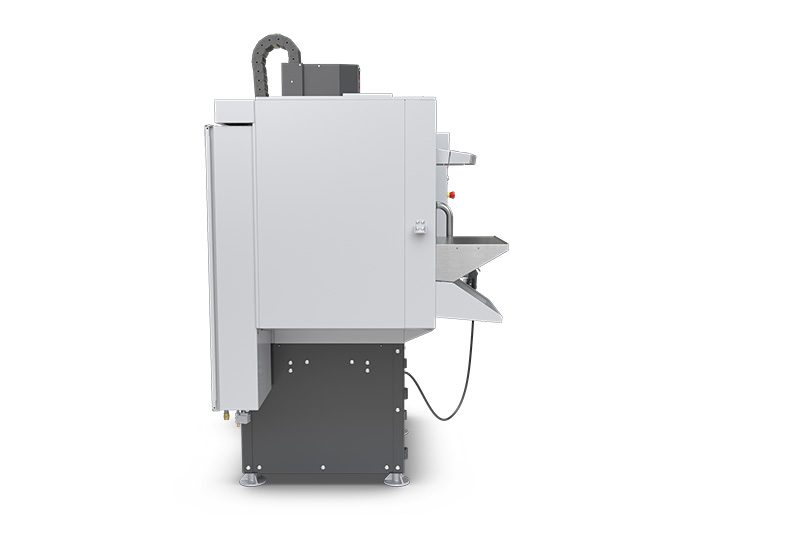

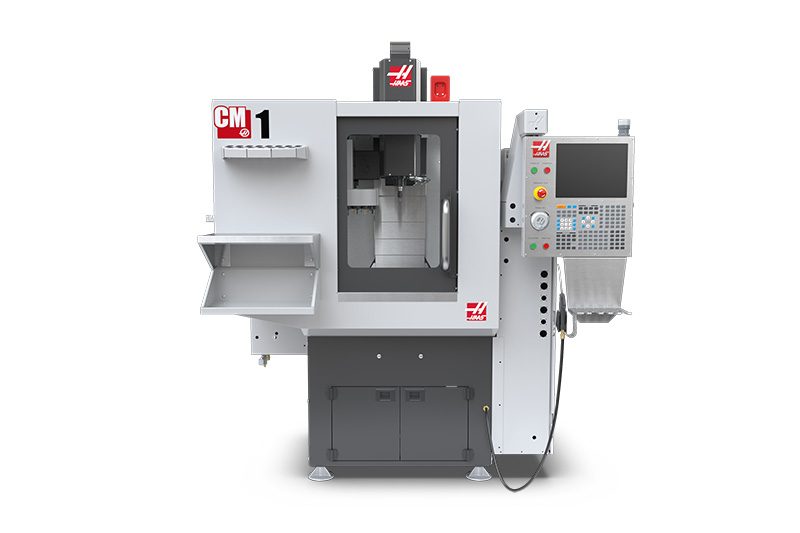

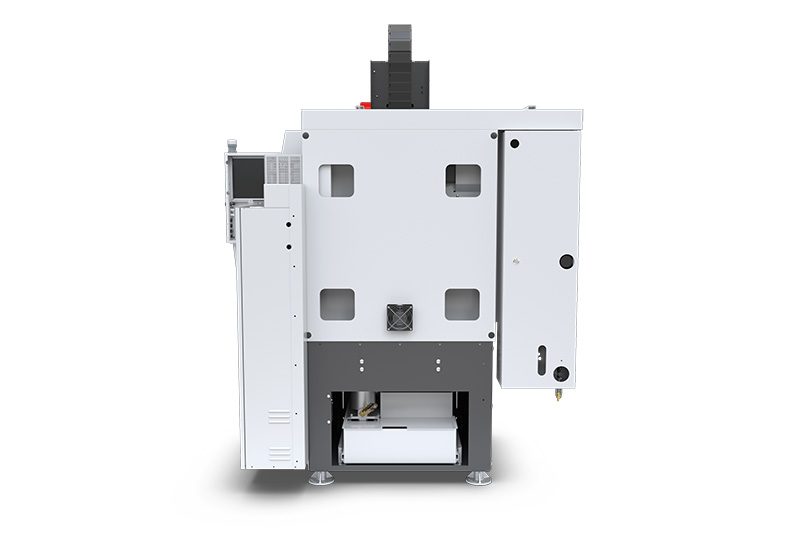

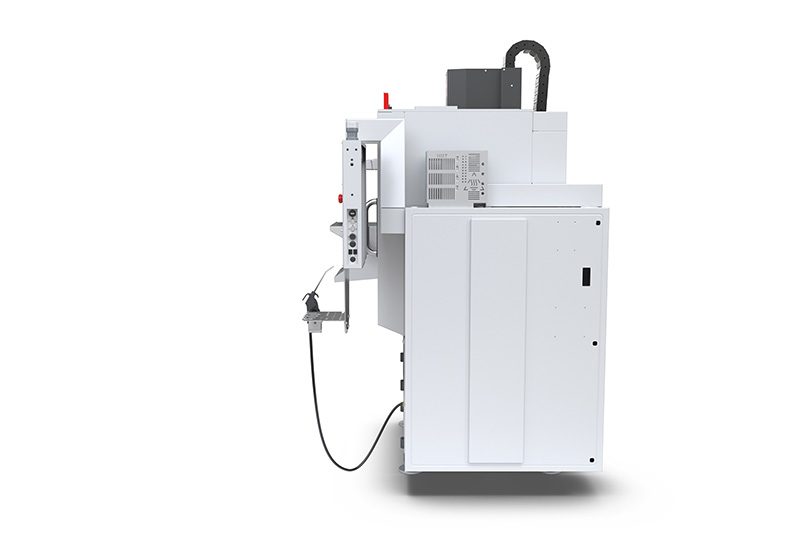

CM-1

Compact CNC Vertical Mill with 12" x 10" x 12" travels
  • 20 Taper
  • 3 Axis
  • 30k RPM
  • 20 Tool Capacity

BUILD & PRICE

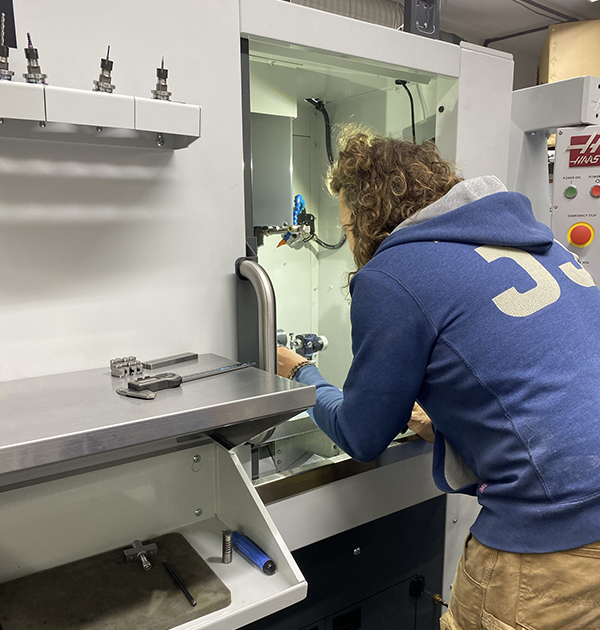

Small parts manufacturing can pose significant machining challenges for the average job shop. Tiny holes, minute features, extreme accuracies, and fine surface finishes may prove difficult for larger CNC machines.

The CM-1 Compact Mill is a small-footprint, high-accuracy solution for producing and prototyping small, high-precision 2D and 3D parts, such as those found in the communications, aerospace, medical, and dental industries.

  • Operates on single- or three-phase power
  • Ultra-compact footprint
  • 20-pocket tool changer
  • 30,000-rpm spindle
  • Made in the USA

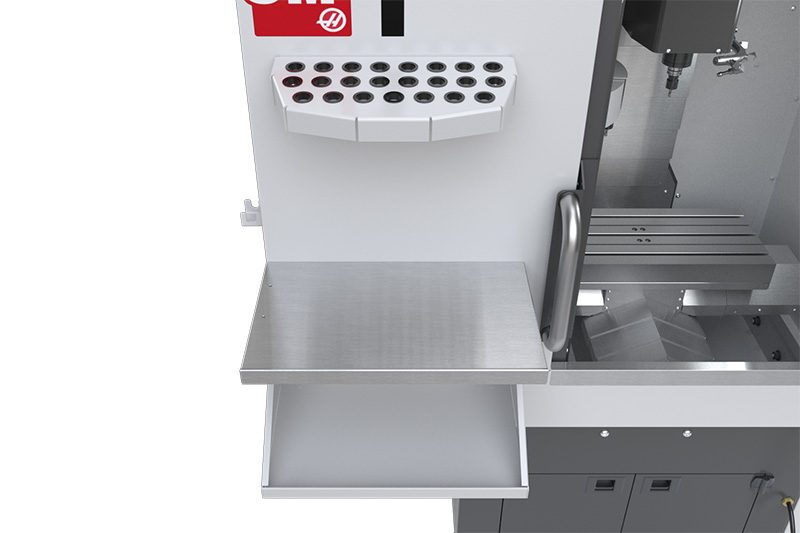

Standard Features

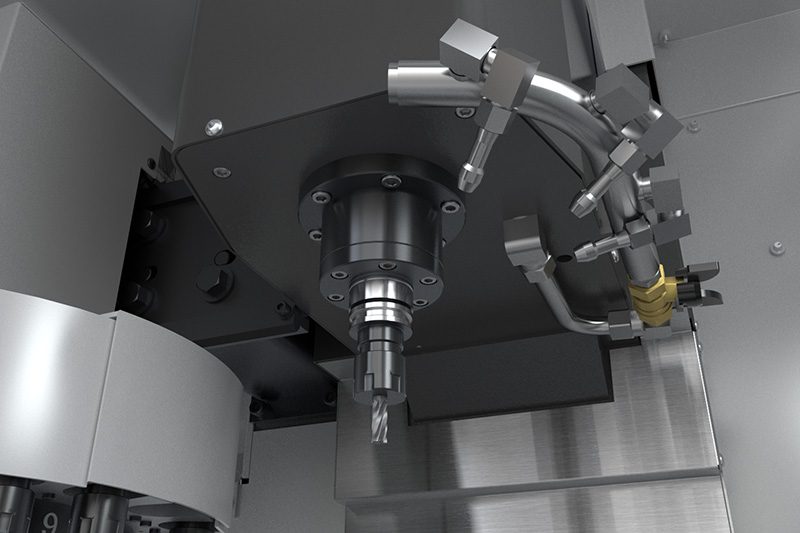

Spindles

  • 30,000-rpm Spindle

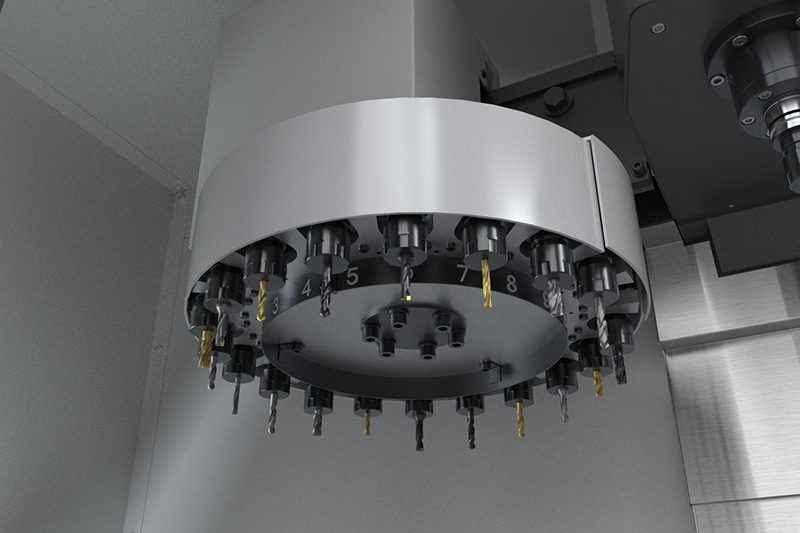

Tool Changers

  • 20-Pocket Carousel

Chip & Coolant Management

  • Window Air Blast
  • 13-Gallon Coolant Tank

The Haas Control

  • Media Display M-Code; M130
  • HaasConnect: Remote monitoring
  • Early Power-Failure Detection Module
  • Ethernet Interface
  • Rigid Tapping
  • User-Definable Macros
  • Coordinate Rotation and Scaling
  • High-Speed Machining
  • Standard Program Memory, 1 GB

Shipping

  • Lifting Provision

Warranty

  • 1-Year Standard Warranty
Travels S.A.E METRIC
X Axis 12.0 in 305 mm
Y Axis 10.0 in 254 mm
Z Axis 12.0 in 305 mm
Spindle Nose to Table (~ max) 15.3 in 387 mm
Spindle Nose to Table (~ min) 3.3 in 83 mm
Spindle S.A.E METRIC
Max Rating 5.0 hp 3.7 kW
Max Speed 30000 rpm 30000 rpm
Max Torque 8 ft-lbf @ 3000 rpm 11 Nm @ 3000 rpm
Drive System Direct Speed, Belt Drive Direct Speed, Belt Drive
Taper ISO 20 ISO 20
Bearing Lubrication Air / Oil Injection Air / Oil Injection
Cooling Air Cooled Air Cooled

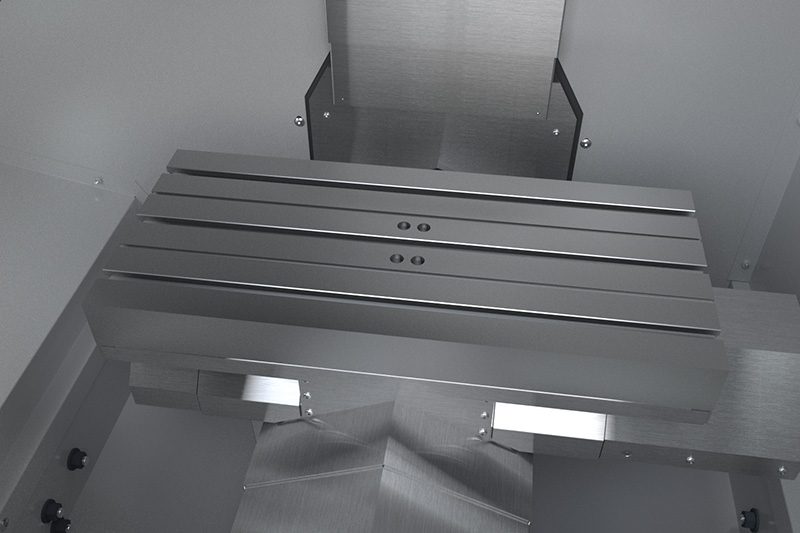

Table S.A.E METRIC
Length 20.0 in 508 mm
Width 10.0 in 254 mm
T-Slot Width 0.375 in 10 mm
T-Slot Center Distance 3.38 in 86 mm
Number of Std T-Slots 3 3
Max Weight on Table (evenly distributed) 150 lb 68 kg
Feedrates S.A.E METRIC
Max Cutting 500 ipm 12.7 m/min
Rapids on X 757 ipm 19.2 m/min
Rapids on Y 757 ipm 19.2 m/min
Rapids on Z 757 ipm 19.2 m/min
Axis Motors S.A.E METRIC
Max Thrust X 1149 lbf 5111 N
Max Thrust Y 1149 lbf 5111 N
Max Thrust Z 1149 lbf 5111 N
Tool Changer S.A.E METRIC
Type Carousel Carousel
Capacity 20 20
Max Tool Diameter (full) 2.3 in 58 mm
Max Tool Weight 5 lb 2.3 kg
Tool-to-Tool (avg) 3.2 s 3.2 s
General S.A.E METRIC
Coolant Capacity 13 gal 49 L
Air Requirements S.A.E METRIC
Air Required 1 scfm @ 100 psi 28 L/min @ 4.8 bar
Inline Air Hose 3/8 in 3/8 in
Coupler (Air) 3/8 in 3/8 in
Air Pressure Min 80 psi 5.5 bar
Dimensions - Shipping S.A.E METRIC
Domestic Pallet Dimensions 79 in x 58 in x 86 in 201 cm x 148 cm x 218 cm
Export Pallet Dimensions 79 in x 58 in x 86 in 201 cm x 148 cm x 218 cm
Weight 2100 lb 955.0 kg
Electrical Specification S.A.E METRIC
Spindle Speed 30000 rpm 30000 rpm
Drive System Direct Speed, Belt Drive Direct Speed, Belt Drive
Spindle Power 5.0 hp 3.7 kW
Input AC Voltage (1 Phase) 220 VAC 220 VAC
Full Load Amps (1 Phase) 16 A 16 A
Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
Full Load Amps (3 Phase) - Low 12 A 12 A

Talk to Us

If you would like more information about how a new Haas machine can bring your products to life, please share your contact information.

See the CM Series in Action


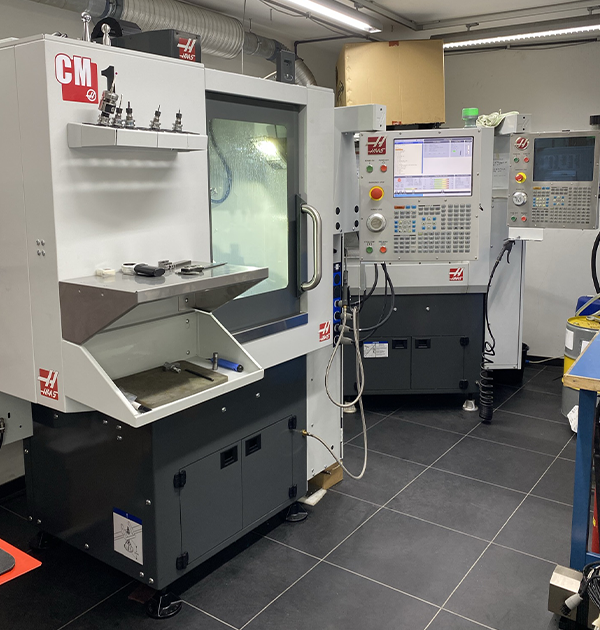

The Haas Compact Mill
The Haas CM-1 is ideal for machining small parts, in particular, those found in medical and dental applications. With spindle speeds of 30,000 and 50,000 rpm, and available full 5-axis capability, this ultra-compact mill will boost your shop’s productivity.
Haas Wireless Intuitive Probing System
With the Haas Wireless Intuitive Probing System (WIPS), you can set tool and work offsets in a fraction of the time. No more edge finders or slips of paper under the tool needed.
Simplify 3+2 and 5-Axis Machining
Using DWO/TCPC (Dynamic Work Offsets / Tool Center Point Control), you can create your CAM program ahead of time, and then place the workholding and part anywhere on the table, with no need to repost your program!
Display Pictures and Videos on Your Haas Control Using M130
With M130, you can display setup sheets, tool lists, work instructions, and even videos – all within your program. No more taping work instructions to the machine, or hand writing notes telling your operator how to load or inspect a part; put it all in your NC program!
