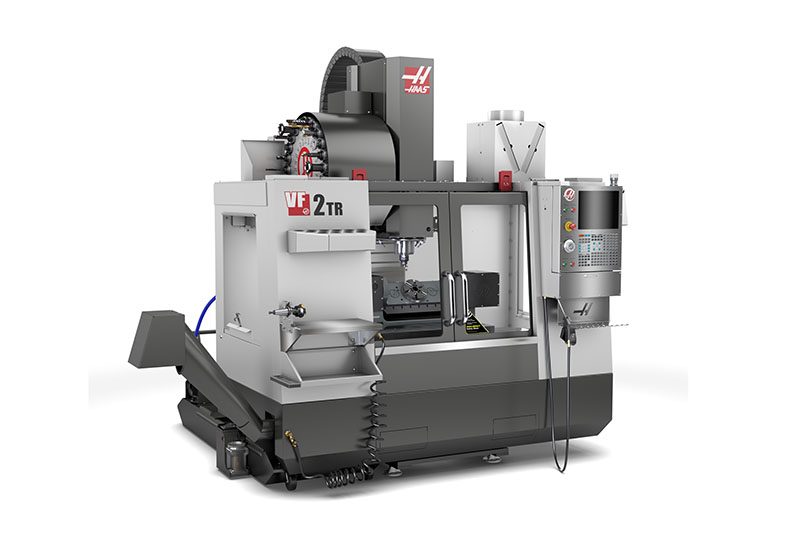

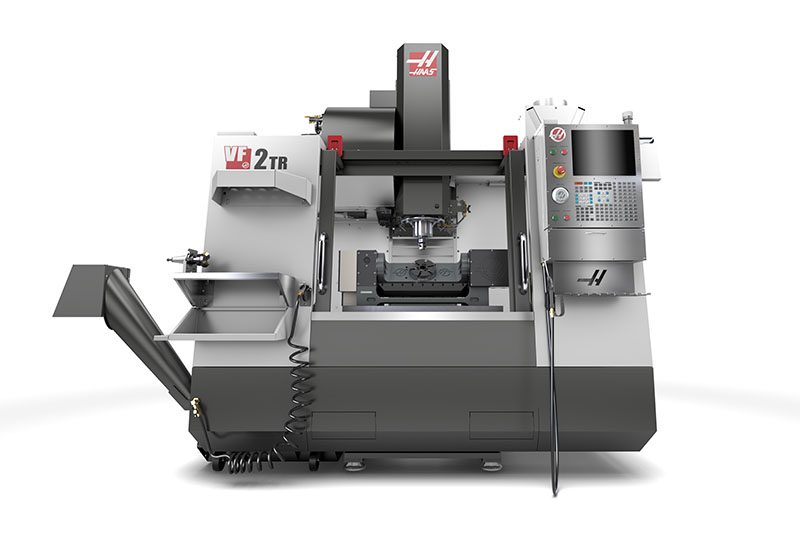

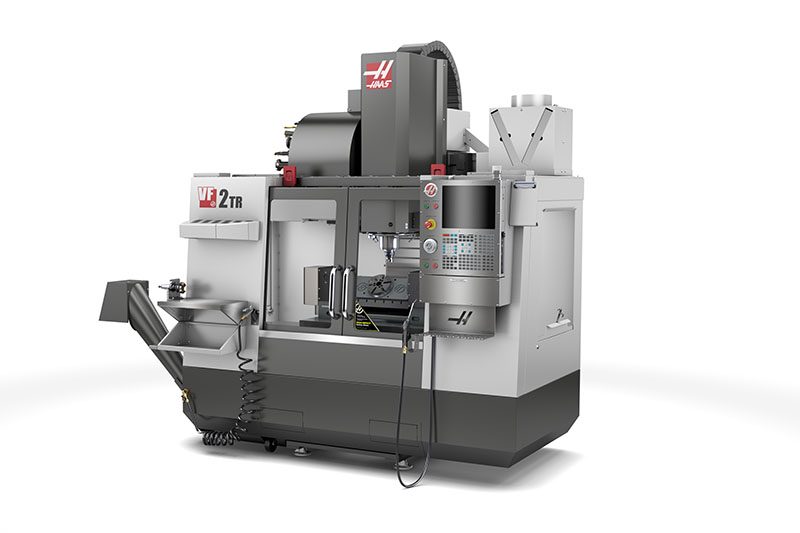

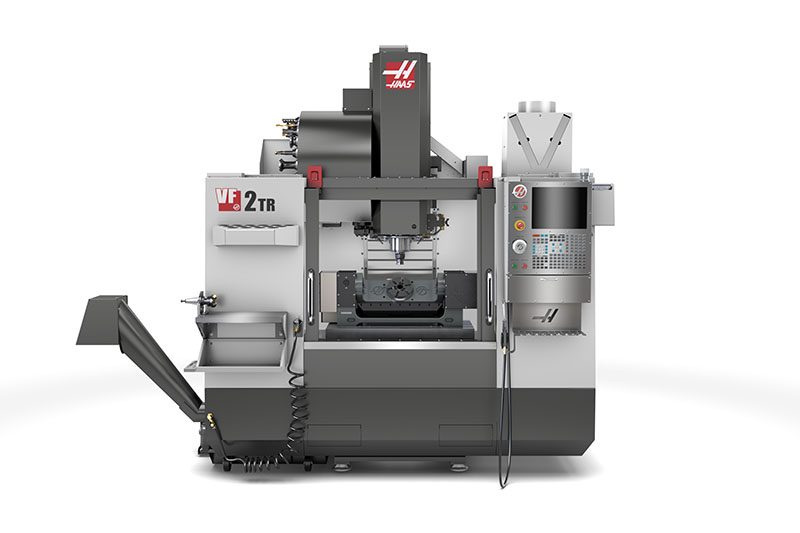

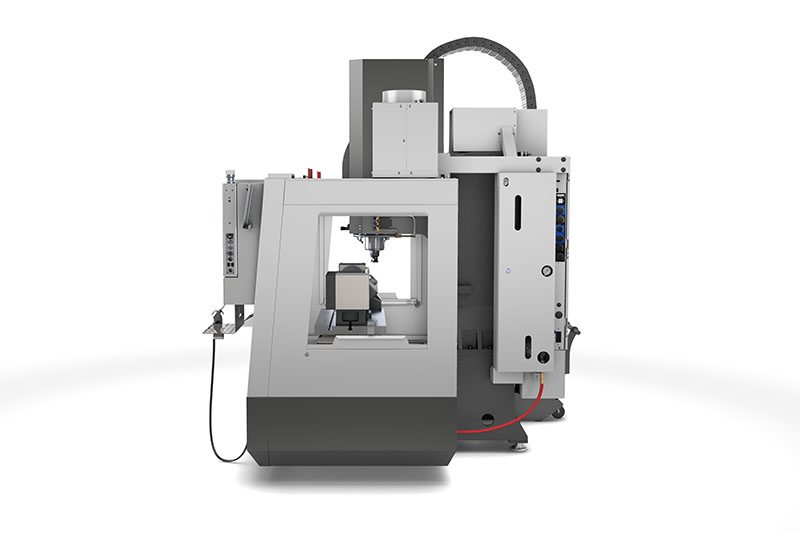

VF-2TR



Trunnion CNC Vertical Mill with 30" x 16" x 20" travels
  • 40 Taper
  • 5 Axis
  • 8.1k RPM
  • 30+1 Tool Capacity

美元价格不包括关税、报关费用、保险费、增值税及运费。
USD prices DO NOT include customs duty, customs fees, insurance, VAT, or freight.

人民币价格包含关税、报关费用、货运保险和增值税, 但不包括运费。
CNY prices include customs duty, customs fees, insurance, and VAT. DOES NOT include freight.

* V Model Machines are only available in CNY pricing

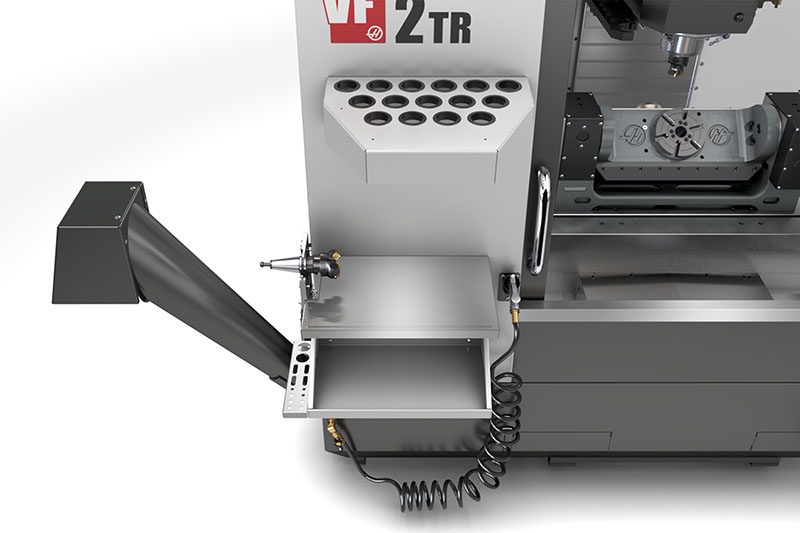

The VF-2TR is a versatile 5-axis machining center based on the popular VF-2 VMC platform. It provides full simultaneous 5-axis motion, or can position a workpiece to almost any angle for machining. For added flexibility, the trunnion is mounted directly to the machine’s standard T-slot table, and can easily be removed when jobs require only 3-axis machining.

  • Capable of full 5-axis contouring
  • Includes high-speed machining software

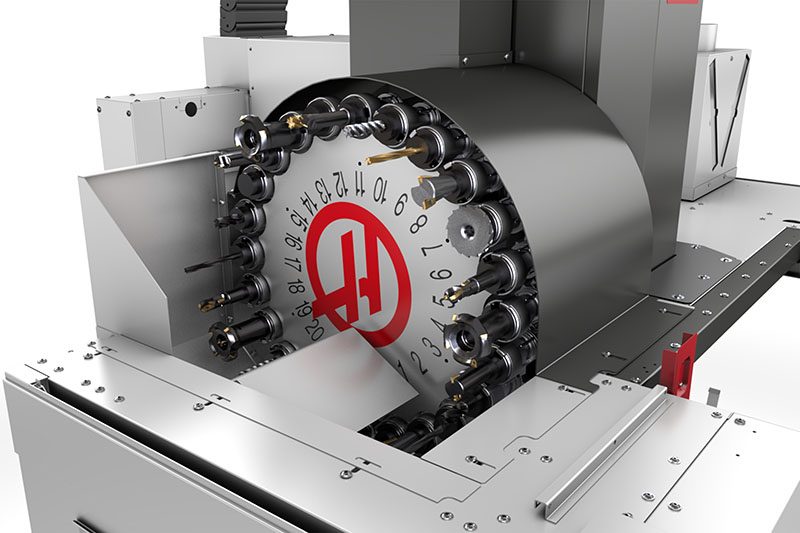

  • Includes side-mount tool changer
  • Made in the USA

Standard Features

Spindles

  • 8100-rpm Spindle

Tool Changers

  • 30+1 Side-Mount

Probing

  • Wireless Intuitive Probing System
  • Rotary-Axis Calibration Tool

Chip & Coolant Management

  • Programmable Coolant Nozzle
  • Window Air Blast
  • Chip Auger
  • 55-Gallon Coolant Tank

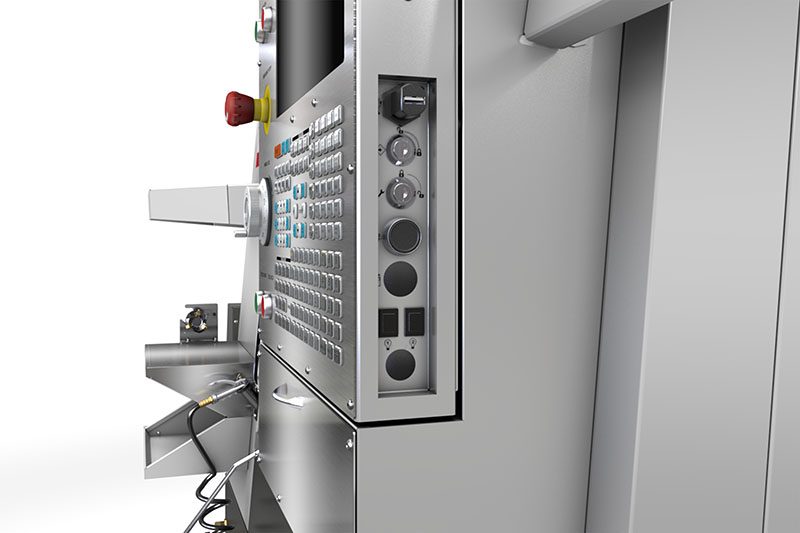

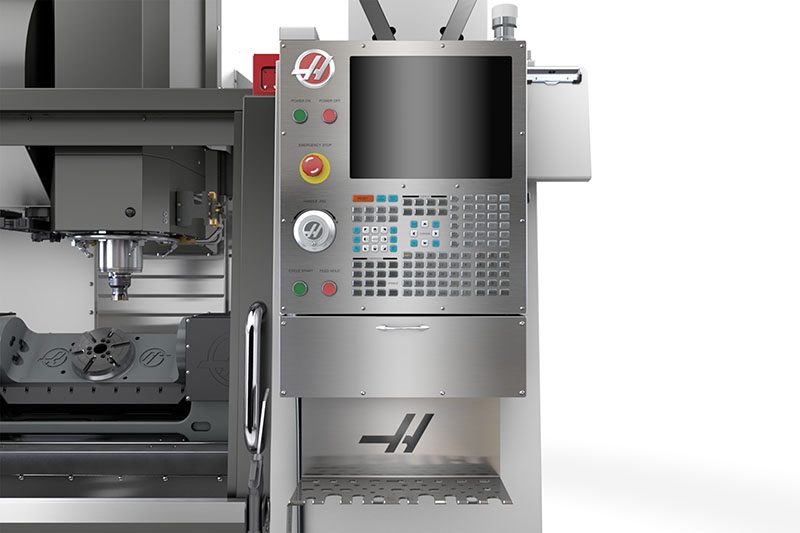

The Haas Control

  • Media Display M-Code; M130
  • HaasConnect: Remote monitoring
  • Early Power-Failure Detection Module
  • Ethernet Interface
  • WiFi Connection for the Haas Control
  • Remote Jog Handle with Color LCD
  • Rigid Tapping
  • Dynamic Work Offsets and Tool Center Point Control
  • High-Speed Machining
  • Standard Program Memory, 1 GB
  • Internal High-Voltage Isolated Transformer

Warranty

  • 1-Year Standard Warranty
Travels S.A.E METRIC
X Axis 30.0 in 762 mm
Y Axis 16.0 in 406 mm
Z Axis 20.0 in 508 mm
Spindle Nose to Table (~ max) 24.0 in 610 mm
Spindle Nose to Platter (~ max) 14.6 in 371 mm
Spindle Nose to Table (~ min) 4.0 in 102 mm
Spindle Nose to Platter (~ min) 5.4- in 137- mm

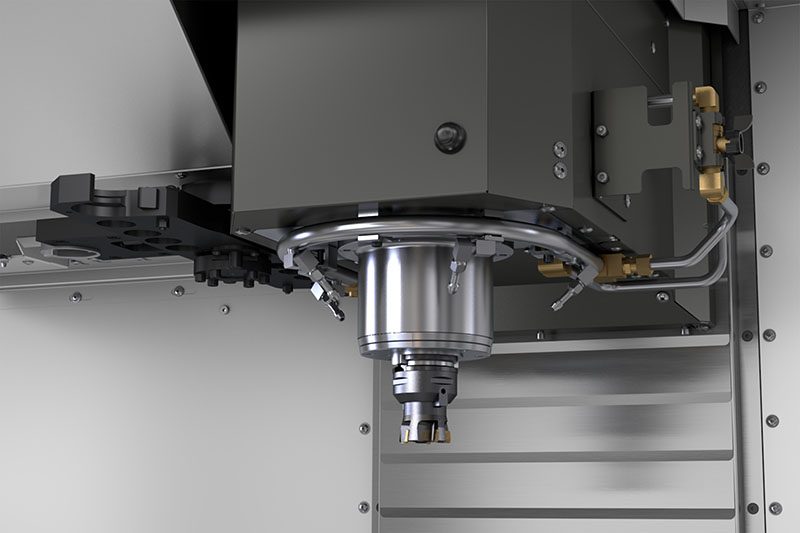

Spindle S.A.E METRIC
Max Rating 30.0 hp 22.4 kW
Max Speed 8100 rpm 8100 rpm
Max Torque 90 ft-lbf @ 2000 rpm 122 Nm @ 2000 rpm
Max Torque w/opt Gearbox 250 ft-lbf @ 450 rpm 339 Nm @ 450 rpm
Drive System Inline Direct-Drive Inline Direct-Drive
Taper CT or BT 40 CT or BT 40
Bearing Lubrication Air / Oil Injection Air / Oil Injection
Cooling Liquid Cooled Liquid Cooled

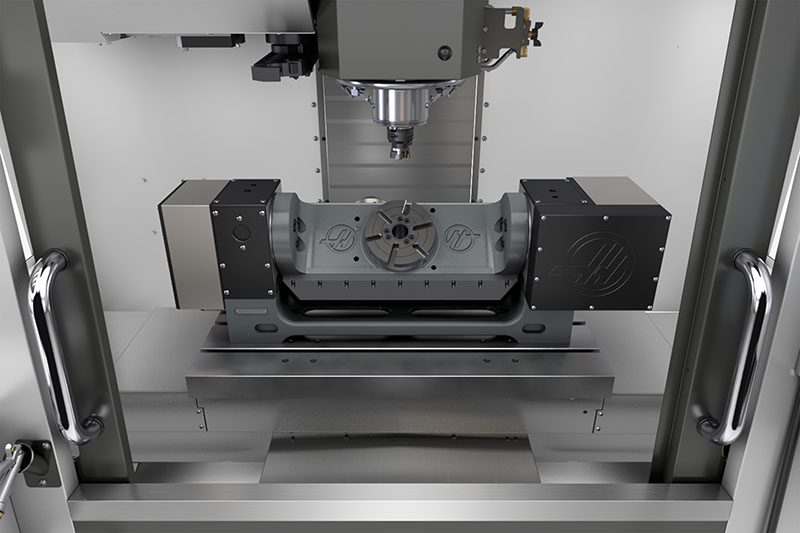

Trunnion S.A.E METRIC
Platter Diameter 6.30 in 160 mm
Max Weight on Platter 80 lb 36.3 kg
Max Part Swing (reduced at tilt angles > ± 90°) 18 in 445 mm
T-Slot Width 0.625 in 16 mm
Number of Std T-Slots 6 6
Pilot Bore Depth 4.63 in 117.6 mm
Rapids on A 80 °/sec 80 °/sec
Rapids on B 80 °/sec 80 °/sec
Max Cutting A 33 °/sec 33 °/sec
Max Cutting B 33 °/sec 33 °/sec
Table S.A.E METRIC
Length 36.0 in 914 mm
Width 14.0 in 356 mm
T-Slot Width 0.630 in 16 mm
T-Slot Center Distance 4.92 in 125 mm
Number of Std T-Slots 3 3
Max Weight on Table (evenly distributed) 3000 lb 1361 kg
Feedrates S.A.E METRIC
Max Cutting 650 ipm 16.5 m/min
Rapids on X 1000 ipm 25.4 m/min
Rapids on Y 1000 ipm 25.4 m/min
Rapids on Z 1000 ipm 25.4 m/min
Axis Motors S.A.E METRIC
Max Thrust X 2550 lbf 11343 N
Max Thrust Y 2550 lbf 11343 N
Max Thrust Z 4200 lbf 18683 N
Tool Changer S.A.E METRIC
Type SMTC SMTC
Capacity 30+1 30+1
Max Tool Diameter (full) 2.5 in 64 mm
Max Tool Diameter (adjacent empty) 5.0 in 127 mm
Max Tool Length (from gage line) 11 in 279 mm
Max Tool Weight 12 lb 5.4 kg
Tool-to-Tool (avg) 2.8 s 2.8 s
Chip-to-Chip (avg) 3.6 s 3.6 s
General S.A.E METRIC
Coolant Capacity 55 gal 208 L
Air Requirements S.A.E METRIC
Air Required 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in 3/8 in
Coupler (Air) 3/8 in 3/8 in
Air Pressure Min 80 psi 5.5 bar
Dimensions - Shipping S.A.E METRIC
Domestic Pallet 102 in x 103 in x 102 in 258 cm x 262 cm x 260 cm
Export Pallet 98 in x 92 in x 101 in 249 cm x 233 cm x 257 cm
Weight 8300 lb 3765.0 kg
Electrical Specification S.A.E METRIC
Spindle Speed 8100 rpm 8100 rpm
Drive System Inline Direct-Drive Inline Direct-Drive
Spindle Power 30.0 hp 22.4 kW
Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
Full Load Amps (3 Phase) - Low 70 A 70 A
Input AC Voltage (3 Phase) - High 440 VAC 440 VAC
Full Load Amps (3 Phase) - High 35 A 35 A
