GM-2-5AX


5-Axis CNC Gantry Mill
  • HSK 63F Taper
  • 5 Axis
  • 20k RPM
  • 30+1 Tool Capacity

美元价格不包括关税、报关费用、保险费、增值税及运费。
USD prices DO NOT include customs duty, customs fees, insurance, VAT, or freight.

人民币价格包含关税、报关费用、货运保险和增值税, 但不包括运费。
CNY prices include customs duty, customs fees, insurance, and VAT. DOES NOT include freight.

* V Model Machines are only available in CNY pricing

The GM-2-5AX is a 5-axis gantry mill designed for complex, large-part machining, such as airframe components, layup molds, and composite structures. The machine’s rigid steel construction provides a very stable cutting platform, and a 1" thick aluminum table is standard. A traveling guard protects the operator from chips and coolant, and keeps the workspace clean.

  • Dual-axis spindle head provides ±245 degrees of C-axis rotation and ±120 degrees of B-axis tilt
  • 20,000-rpm HSK 63F spindle
  • Rigid-steel construction
  • Traveling guard for chip and coolant containment
  • 1" thick aluminum table
  • Made in the USA

LARGE TRAVELS, 5-AXIS VERSATILITY


Whether you’re machining large airframe components, trimming complex composite structures, or shaping massive layup molds, the GM-2-5AX has the capacity and capability to handle even your largest parts. The 20,000-rpm HSK 63F spindle provides the speed and rigidity you need for long tools and high surface feeds, and the dual-axis spindle head allows you to reach nearly an surface for machining complex contours and difficult features.

GM-2-5AX Test Cut


The GM-2-5AX articulating head is able to machine all 5 sides of your part, allowing you to do all your operations in a single setup. Watch the GM-2-5AX in action in this short demo.

yeet

Standard Features

Spindles

  • 20,000-rpm Spindle, HSK-63F

Tool Changers

  • 30+1 Side-Mount, HSK

Probing

  • Wireless Intuitive Probing System

Chip & Coolant Management

  • Chip Auger

The Haas Control

  • CNC Control Cabinet Cooler
  • Media Display M-Code; M130
  • HaasConnect: Remote monitoring
  • Early Power-Failure Detection Module
  • Ethernet Interface
  • WiFi Connection for the Haas Control
  • Remote Jog Handle with Touchscreen Display
  • Rigid Tapping
  • Dynamic Work Offsets and Tool Center Point Control
  • Standard Program Memory, 1 GB
  • Second Home Position
  • Internal High-Voltage Isolated Transformer

Product Options

  • Aluminum Table

Warranty

  • 1-Year Standard Warranty

Overview

There are a number of technical details that make the GM-2-5AX gantry mill very different from all other Haas 5-axis machines currently available. These differences are explained in the following blocks. Keep scrolling to get a better understanding of the capabilities of this unique 5-axis machine.

Spindle


The GM-2-5AX features a 20,000-rpm HSK spindle perfect for trimming composite structures, finish-profiling 3D surfaces, and hole making.

The high-speed spindle is best suited for composites, aluminum, plastics, Ren-Board, and other non-ferrous materials. The 20,000-rpm speed allows for very high surface footage, for great finishes and small tools.

The integral spindle design allows for fast acceleration rates to get the spindle speed up and down quickly. Consult the torque chart for your application.

Gimbal Head


The GM-2-5AX is a full 5-axis “gimbal head” machine, where both rotary axes are mounted on the Z-axis ram, and the spindle/cutting tool assembly rotates, while the workpiece is stationary on the machine table. This allows the cutting tool to point at any angle within the rotary-axis travel limits.

G268 Feature Coordinate System

Feature Coordinate System (G268) is a new feature in the Haas control unique to this “gimbal head” style machine. By definition, the work plane is perpendicular to the spindle centerline. On all other Haas 5-axis milling machines, the spindle centerline is parallel to the Z-axis, so no matter the orientation of a workpiece mounted on a rotary table, the work plane is perpendicular to the Z-axis. This assumes fixed angle heads are not used . . . more on that later.

G268 Feature Coordinate System (continued)

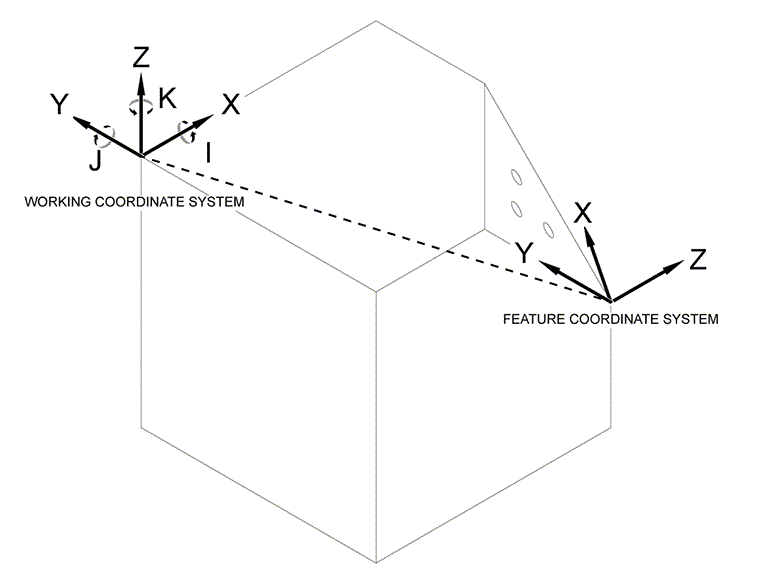

Now that the spindle centerline (cutting tool) can tilt to virtually any angle, we created G268 Feature Coordinate System to simplify programming of planar toolpaths in tilted work planes, including canned cycles, circular interpolation, and cutter compensation.

Command G268 with X-, Y-, and Z-axis coordinates in the Workpiece Coordinate System to establish the zero point of a new Feature Coordinate System. The tilted work plane angle will be perpendicular to the current tool axis direction using the actual tool axis angles (B & C axes on GM-2-5AX). The tool axis direction may also be defined using optional address codes I, J, K with G268. This alternative method of defining the angles allows the use of G268 Feature Coordinate System with fixed-angle heads on 3-axis milling machines, as well as 2- and 3-axis lathes.

G253 Orient Spindle Normal to Feature Coordinate System

G253 Orient Spindle Normal to Feature Coordinate System simplifies programming tilted work planes when using multiple tools in the same tilted plane.

When G268 (Tilted Work Plane) is active, the tool axis direction and Feature Coordinate System are stored in the control. When work is finished with a particular cutting tool in the tilted plane, you can retract to a safe position and command a tool change. Once the tool is changed and repositioned to a safe location, command G253 (Orient Spindle Normal to Feature Coordinate System) to return the tool axis to the tilted work plane. There is no need to cancel the tilted work plane and define it again for the next tool, just because you performed a tool change.

Vector Jogging

Machines with gimbal heads need a way to jog along the tool axis vector. Activate Vector Jogging mode by pressing the letter keys [V], then [J] followed by the [HANDLE JOG] key. Jogging can only occur by rotating the handle jog wheel. Exit Vector Jog mode by pressing one of the single-axis jog keys. Machines without a gimbal head but fitted with fixed-angle head toolholders allow the user to enter the fixed angle after entering Vector Jog mode.

The Vector Jogging feature aids in recovery from a power outage while drilling a hole at an angle. When power is restored, the control knows that the rotary axes were not zero, so it activates RECOVERY mode. Vector Jogging is used to remove the cutting tool from the workpiece before running the Power Up/Restart function to home the machine axes. This even works for tap recovery, if the machine was in a tapping cycle when the power failed.

Safe Zone Calibration for Crash Protection




The design of gimbal head machines makes them very useful for many applications, but the same features that make them useful, also make them more susceptible to a crash. The fact that the rotary axes can point cutting tools at virtually any angle, means the safe travel limits of this machine are dynamic, and change with machine position. Multiple axes are both involved in, and limited by, the definition of these limits.

The GM-2-5AX has permanent elements (see above left and right) that can potentially be involved in a crash, like the machine table, machine column, spindle head, tool changer, and machine bridge. It also has NON-permanent elements to consider, like tool length and part dimensions on the table.

The goal is to eliminate the possibility of a crash between permanent elements of the machine.



The GM-2-5AX software defines these potential crash zones, and stores their positions, based on data gathered during the probe calibration and Safe Zone calibration cycles.

Once established, the control prevents motion into the restricted zones, based on the current and upcoming position commands of all axes.

The simplest example is shown below. The Z-axis travel is maximized, so machining with the B-axis rotated to 90-degrees (image below, left) can be done as close to the machine table as safely possible. The problem is that the spindle nose could be commanded to run into the table if the B-axis is at zero degrees (image below, right). The Safe Zone feature limits Z-axis travel when the B-axis is at zero, and removes the Safe Zone travel limit when the B-axis is a 90-degrees (or minus 90-degrees).

Travels S.A.E METRIC
X Axis 145.0 in 3683 mm
Y Axis 87.5 in 2223 mm
Z Axis 39.4 in 1000 mm
Spindle Nose to Table (~ max) 37.0 in 940 mm
Spindle Nose to Table (~ min) 5.0 in 127 mm
Spindle S.A.E METRIC
Max Rating 13.4 hp 10.0 kW
Max Speed 20000 rpm 20000 rpm
Max Torque 11 ft-lbf @ 7500 rpm 15 Nm @ 7500 rpm
Drive System Integral Spindle/Motor Integral Spindle/Motor
Taper HSK-63F HSK-63F
Bearing Lubrication Grease Packed Grease Packed
Cooling Liquid Cooled Liquid Cooled
B Axis – Tilt S.A.E METRIC
Travel 120 ° to 120- ° 120 ° to 120- °
Max Speed 110 °/sec 110 °/sec
Max Torque 250 ft-lbf 340 Nm
C Axis – Rotation S.A.E METRIC
Travel ± 245 ° to 245- ° 245 ° to 245- °
Max Torque 258 ft-lbf 350 Nm
Max Speed 200 °/sec 200 °/sec
Table S.A.E METRIC
Length 144.0 in 3658 mm
Width 72.0 in 1829 mm
Thickness 1.0 in 25 mm
Max Weight on Table (evenly distributed) 6000 lb 2722 kg
Between Columns 75 in 1905 mm
Feedrates S.A.E METRIC
Max Cutting 800 ipm 20.3 m/min
Rapids on X 800 ipm 20.3 m/min
Rapids on Y 2100 ipm 53.3 m/min
Rapids on Z 1100 ipm 27.9 m/min
Axis Motors S.A.E METRIC
Max Thrust X 4500 lbf 20017 N
Max Thrust Y 1650 lbf 7340 N
Max Thrust Z 2000 lbf 8896 N
Tool Changer S.A.E METRIC
Type SMTC SMTC
Capacity 30+1 30+1
Max Tool Diameter (full) 2.5 in 64 mm
Max Tool Diameter (adjacent empty) 2.5 in 64 mm
Max Tool Length (from gage line) 11 in 279 mm
Max Tool Weight 12 lb 5.4 kg
General S.A.E METRIC
Coolant Capacity 95 gal 360 L
Weight 20000 lb 9072.0 kg
Air Requirements S.A.E METRIC
Air Required 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Dimensions - Shipping S.A.E METRIC
Domestic Pallet 226 in x 143 in x 136 in 574 cm x 363 cm x 345 cm
Export Crate 226 in x 143 in x 140 in 574 cm x 363 cm x 356 cm
Weight 22040 lb 10000.0 kg
Electrical Specification S.A.E METRIC
Spindle Speed 20000 rpm 20000 rpm
Drive System Integral Spindle/Motor Integral Spindle/Motor
Spindle Power 13.4 hp 10.0 kW
Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
Full Load Amps (3 Phase) - Low 38 A 38 A
Input AC Voltage (3 Phase) - High 440 VAC 440 VAC
Full Load Amps (3 Phase) - High 19 A 19 A
