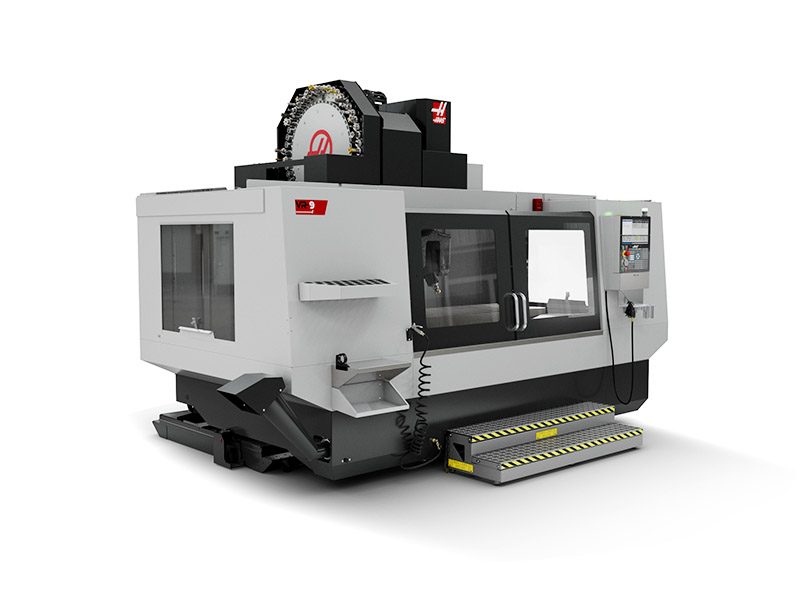

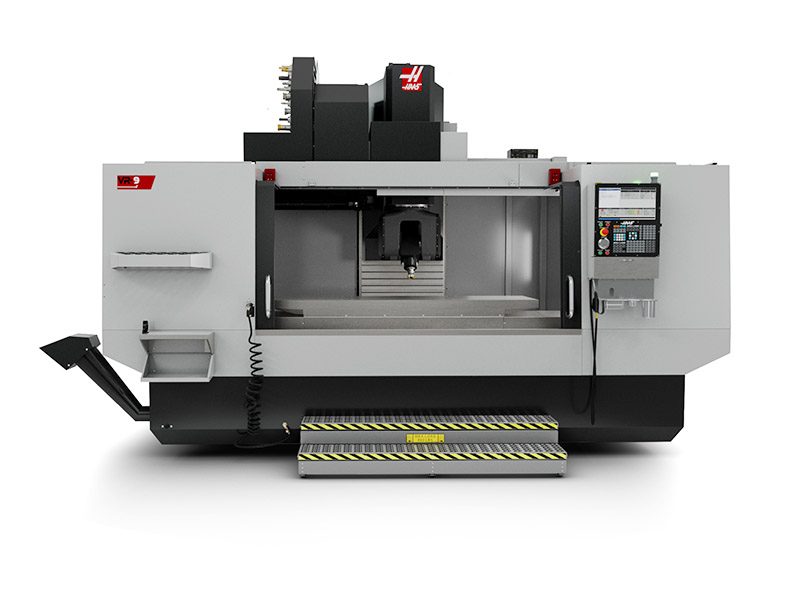

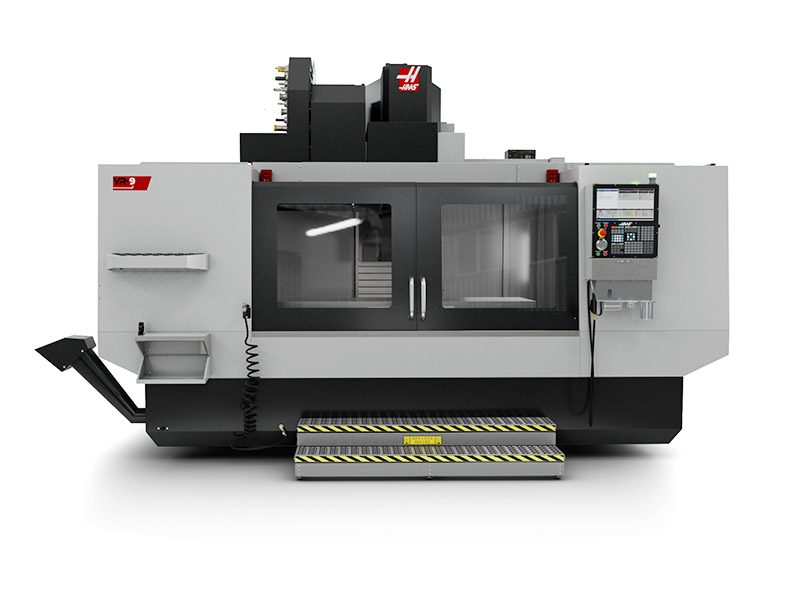

VR-9





5-Axis Vertical Machining Center; 84" x 40" x 38", 2-axis head
  • HSK-A63 Taper
  • 5 Axis
  • 20k RPM
  • 30+1 Tool Capacity

美元价格不包括关税、报关费用、保险费、增值税及运费。
USD prices DO NOT include customs duty, customs fees, insurance, VAT, or freight.

人民币价格包含关税、报关费用、货运保险和增值税, 但不包括运费。
CNY prices include customs duty, customs fees, insurance, and VAT. DOES NOT include freight.

* V Model Machines are only available in CNY pricing

Haas Delivered Price

This price includes shipping cost, export and import duties, insurance, and any other expenses incurred during shipping to a location in France agreed with you as a buyer. No other mandatory costs can be added to the delivery of a Haas CNC Product.

Available for Q3 2020 delivery in the U.S. and Canada only.



Note: Pre-production specifications and dimensions only; subject to change without notice.


Haas VR Series VMCs are the perfect solutions when your 5-axis parts are too large to rotate using traditional rotary tables and trunnions. Each VR Series machine features a large T-slot table that easily supports large workpieces and fixtures, and a powerful 2-axis gimbaled spindle head that provides access to nearly any angle on the part for complex shapes, undercuts, and 5-side machining.

  • 5-axis simultaneous machining
  • Powerful integral-motor spindle
  • Dual-axis spindle head
  • HSK-A63 taper
  • Includes Wireless Intuitive Probing System
  • Includes Dynamic Work Offsets & Tool Center Point Control
  • Made in the USA

Standard Features

Tool Changers

  • 30+1 Side-Mount Tool Changer, HSK

Probing

  • Wireless Intuitive Probing System

Chip & Coolant Management

  • Window Air Blast
  • Chip Auger
  • 95-Gallon Coolant Tank

The Haas Control

  • Media Display M-Code; M130
  • HaasConnect: Remote monitoring
  • Early Power-Failure Detection Module
  • Ethernet Interface
  • WiFi Connection for the Haas Control
  • HaasDrop
  • Remote Jog Handle with Touchscreen Display
  • Rigid Tapping
  • Dynamic Work Offsets and Tool Center Point Control
  • Standard Program Memory, 1 GB

Product Options

  • Auto Door for Mills

Shipping

  • Lifting Provision

Warranty

  • 1-Year Standard Warranty

Overview

The Haas VR Series machines combine an upgraded version of the integrated gimbal spindle used on our GM-2-5AX, with our extremely popular VF Series VMCs. The result is a very versatile full 5-axis machine tool.

This is a very different machine tool compared to our previous versions of the VR Series machines. The main technical difference is the rotary axis configuration. The previous generation VR Series machines used an A-axis mounted on a B-axis to support the spindle, whereas this new version is a B-axis mounted on a C-axis. This means that G-code programs developed for the discontinued VR machines are not compatible with the new versions, and post-processors will have to be modified to reflect the different axis configuration.

There are a number of technical details that make the VR Series mills very different from many other Haas 5-axis machines currently available. These differences are explained in the following blocks. Keep scrolling to get a better understanding of the capabilities of these unique 5-axis machines.

* Pre-production specifications and dimensions; subject to change without notice.

Spindle

The VR Series mills features a 20,000-rpm HSK-A63 integral-motor spindle. This upgraded spindle features 50% more power and 40% more torque than the HSK-F63 spindle in our GM-2-5AX. More power means more aggressive material removal is possible. This is not just a finishing machine!

While the high-speed spindle is best suited for aluminum, composites, and other non-ferrous materials, the increased power allows cutting a variety of steels. Balanced material removal rates can be achieved with modern high-efficiency milling techniques.

The 20,000-rpm speed allows for very high surface footage, for great finishes and small tools.

The integral-motor spindle design allows for fast acceleration rates to get the spindle speed up and down quickly. Consult the torque chart for your application.

Gimbal Head

The VR Series mills are full 5-axis “gimbal head” machines, where both rotary axes are mounted on the Z-axis, and the spindle/cutting tool assembly rotates, while the workpiece is stationary on the machine table. This allows the cutting tool to point at any angle within the rotary-axis travel limits.

G268 Feature Coordinate System

Feature Coordinate System (G268) is a new feature in the Haas control unique to this “gimbal head” style machine. By definition, the work plane is perpendicular to the spindle centerline. On most other Haas 5-axis milling machines, the spindle centerline is parallel to the Z-axis, so no matter the orientation of a workpiece mounted on a rotary table, the work plane is perpendicular to the Z-axis. This assumes that fixed angle heads are not being used . . . more on that later.

G268 Feature Coordinate System (continued)

Now that the spindle centerline (cutting tool) can tilt to virtually any angle, we created G268 Feature Coordinate System to simplify programming of planar toolpaths in tilted work planes, including canned cycles, circular interpolation, and cutter compensation.

Command G268 with X-, Y-, and Z-axis coordinates in the Workpiece Coordinate System to establish the zero point of a new Feature Coordinate System. The tilted work plane angle will be perpendicular to the current tool axis direction using the actual tool axis angles (B and C axes on VR Series machines). The tool axis direction may also be defined using optional address codes I, J, K with G268. This alternative method of defining the angles allows the use of G268 Feature Coordinate System with fixed-angle heads on 3-axis milling machines, as well as 2- and 3-axis lathes.

Refer to the Operator’s Manual for more details on G268.

G253 Orient Spindle Normal to Feature Coordinate System

G253 Orient Spindle Normal to Feature Coordinate System simplifies the programming of tilted work planes when using multiple tools in the same tilted plane.

When G268 (Tilted Work Plane) is active, the tool axis direction and Feature Coordinate System are stored in the control. When work is finished with a particular cutting tool in the tilted plane, you can retract to a safe position, and command a tool change. Once the tool is changed and repositioned to a safe location, command G253 (Orient Spindle Normal to Feature Coordinate System) to return the tool axis to the tilted work plane. There is no need to cancel the tilted work plane and define it again for the next tool, just because you performed a tool change.

Vector Jogging

Machines with gimbal heads need a way to jog along the tool axis vector. Activate Vector Jogging mode by pressing the letter keys [V], then [J] followed by the [HANDLE JOG] key. Jogging can only occur by rotating the handle jog wheel. Exit Vector Jog mode by pressing one of the single-axis jog keys. Machines without a gimbal head but fitted with fixed-angle-head toolholders allow the user to enter the fixed angle after entering Vector Jog mode.

The Vector Jogging feature aids in recovery from a power outage while drilling a hole at an angle. When power is restored, the control knows that the rotary axes were not zero, so it activates RECOVERY mode. Vector Jogging is used to remove the cutting tool from the workpiece before running the Power Up/Restart function to home the machine axes. This even works for tap recovery, if the machine was in a tapping cycle when the power failed.

Safe Zone Calibration for Crash Protection



The design of gimbal head machines makes them very useful for many applications, but the same features that make them useful, also make them more susceptible to a crash. The fact that the rotary axes can point cutting tools at virtually any angle, means the safe travel limits of this machine are dynamic, and change with machine position. Multiple axes are both involved in, and limited by, the definition of these limits.

The VR machines have permanent elements (see above left and right) that can potentially be involved in a crash, like the machine table, machine column, spindle head, tool changer, and machine bridge. It also has NON-permanent elements to consider, like tool length and part dimensions on the table.

The goal is to eliminate the possibility of a crash between permanent elements of the machine.



The VR Series software defines these potential crash zones, and stores their positions, based on data gathered during the probe calibration and Safe Zone calibration cycles.

Once established, the control prevents motion into the restricted zones, based on the current and upcoming position commands of all axes.

The simplest example is shown below. The Z-axis travel is maximized, so machining with the B-axis rotated to 90-degrees (image below, left) can be done as close to the machine table as safely possible. The problem is that the spindle nose could be commanded to run into the table if the B-axis is at zero degrees (image below, right). The Safe Zone feature limits Z-axis travel when the B-axis is at zero, and removes the Safe Zone travel limit when the B-axis is a 90-degrees (or minus 90-degrees).

* Pre-production specifications and dimensions; subject to change without notice.

Travels S.A.E METRIC
X Axis 84.0 in 2134 mm
Y Axis 40.0 in 1016 mm
Z Axis 38.0 in 965 mm
Spindle Nose to Table (~ max) 42.0 in 1067 mm
Spindle Nose to Table (~ min) 4.0 in 102 mm
Spindle S.A.E METRIC
Max Rating 20.1 hp 15.0 kW
Max Speed 20000 rpm 20000 rpm
Max Torque 15 ft-lbf @ 6000 rpm 21 Nm @ 6000 rpm
Drive System Integral Spindle/Motor Integral Spindle/Motor
Taper HSK-A63 HSK-A63
Bearing Lubrication Grease Packed Grease Packed
Cooling Liquid Cooled Liquid Cooled
B Axis – Tilt S.A.E METRIC
Travel 120 ° to 120- ° 120 ° to 120- °
Max Speed 112 °/sec 112 °/sec
Max Torque 295 ft-lbf 400 Nm
Brake Torque 403 ft-lbf 547 Nm
C Axis – Rotation S.A.E METRIC
Travel ± 245 ° to 245- ° 245 ° to 245- °
Max Speed 208 °/sec 208 °/sec
Max Torque 264 ft-lbf 359 Nm
Brake Torque 442 ft-lbf 600 Nm
Table S.A.E METRIC
Length 84.0 in 2134 mm
Width 36.0 in 914 mm
T-Slot Width 0.630 in 16 mm
T-Slot Center Distance 4.92 in 125 mm
Number of Std T-Slots 7 7
Max Weight on Table (evenly distributed) 4000 lb 1814 kg
Feedrates S.A.E METRIC
Max Cutting 500 ipm 12.7 m/min
Rapids on X 600 ipm 15.2 m/min
Rapids on Y 600 ipm 15.2 m/min
Rapids on Z 600 ipm 15.2 m/min
Axis Motors S.A.E METRIC
Max Thrust X 3400 lbf 15124 N
Max Thrust Y 3400 lbf 15124 N
Max Thrust Z 5600 lbf 24910 N
Tool Changer S.A.E METRIC
Type SMTC SMTC
Capacity 30+1 30+1
Max Tool Diameter (full) 2.5 in 64 mm
Max Tool Diameter (adjacent empty) 5.0 in 127 mm
Max Tool Length (from gage line) 16 in 406 mm
Max Tool Weight 12 lb 5.4 kg
Tool-to-Tool (avg) 2.8 s 2.8 s
Chip-to-Chip (avg) 3.6 s 3.6 s
General S.A.E METRIC
Coolant Capacity 95 gal 360 L
Air Requirements S.A.E METRIC
Air Required 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in 3/8 in
Coupler (Air) 3/8 in 3/8 in
Air Pressure Min 80 psi 5.5 bar
Dimensions - Shipping S.A.E METRIC
Domestic Pallet 214 in x 120 in x 130 in 544 cm x 305 cm x 331 cm
Export Crate 288 in x 123 in x 134 in 732 cm x 313 cm x 341 cm
Weight 28300 lb 11250.0 kg
Domestic Pallet w/EC Option 214 in 120 in 135 in 544 cm 305 cm 343 cm
Export Crate w/EC Option 288 in 123 in 139 in 732 cm 313 cm 354 cm
Weight w/EC Option 28300 lb 11250 kg
Domestic Pallet w/50+1 SMTC 214 in 120 in 138 in 544 cm 305 cm 351 cm
Export Crate w/50+1 SMTC 288 in 123 in 142 in 732 cm 313 cm 361 cm
Weight w/50+1 SMTC 28300 lb 11250 kg
Domestic Pallet w/EC Option & 50+1 SMTC 214 in 120 in 143 in 544 cm 305 cm 364 cm
Export Crate w/EC Option & 50+1 SMTC 288 in 123 in 147 in 732 cm 313 cm 374 cm
Weight w/EC Option & 50+1 SMTC 28300 lb 11250 kg

Haas machines are designed to operate on 220 VAC power. An optional internal high-voltage transformer (380 - 480 VAC) is available for all models, except the Desktop Mill, CL-1, and CM-1.
Note: This optional high-voltage internal transformer is not field installable; it must be ordered with the machine.
