EC-500/50

Product Image

DOWNLOAD AN INSTANT CUSTOM QUOTE FOR ANY HAAS MACHINE

GET QUOTE


Your browser doesn't support HTML5 video. Your browser doesn't support HTML5 video.

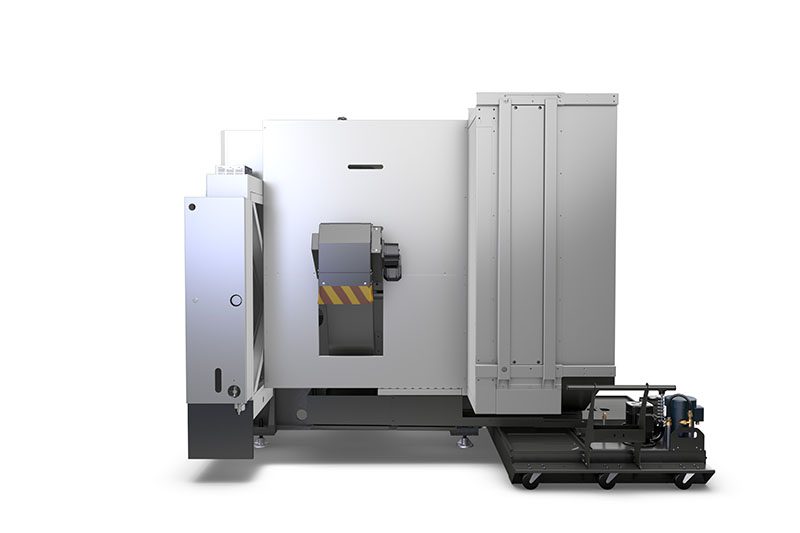

EC-500/50

    CNY ONLY
    CNY ONLY
500 mm Twin-Pallet HMC, 50-Taper, 32" x 25" x 28" travels

  • 50 Taper
  • 4 Axis
  • 7.5k RPM
  • 50+1 Tool Capacity

美元价格不包括关税、报关费用、保险费、增值税及运费。
USD prices DO NOT include customs duty, customs fees, insurance, VAT, or freight.

人民币价格包含关税、报关费用、货运保险和增值税, 但不包括运费。
CNY prices include customs duty, customs fees, insurance, and VAT. DOES NOT include freight.

* V Model Machines are only available in CNY pricing

Haas Delivered Price

This price includes shipping cost, export and import duties, insurance, and any other expenses incurred during shipping to a location in France agreed with you as a buyer. No other mandatory costs can be added to the delivery of a Haas CNC Product.

Compare Machines
BUILD & PRICE
Contact Distributor
  • Overview
  • Details
  • Specs
  • Gallery
  • Get Info

TECHNICAL DOCUMENTS

  • 3D Model (ZIP)
  • Installation Guide
  • Layout Drawing
  • CDF Conveyor Layout Drawing
  • Torque Chart
  • Operator’s Manual
  • EC Series Flyer

Standard Features

Spindles

  • 7500-rpm Spindle

Tool Changers

  • 50+1 Side-Mount Tool Changer, 50-Taper

Chip & Coolant Management

  • Belt-Type Chip Conveyor HMC
  • Window Air Blast
  • 95-Gallon Coolant Tank
  • Variable Flow Coolant

The Haas Control

  • CNC Control Cabinet Cooler
  • Control Touch Screen
  • Media Display M-Code; M130
  • HaasConnect: Remote monitoring
  • Early Power-Failure Detection Module
  • Ethernet Interface
  • WiFi Connection for the Haas Control
  • HaasDrop
  • Rigid Tapping
  • Standard Program Memory, 1 GB
  • Second Home Position
  • Internal High-Voltage Isolated Transformer
  • Power Surge Protection

Product Options

  • 4th-Axis Rotary Scales

Workholding

  • EC-500 Pallet Kit, Inch
  • EC-500 Pallet Kit, Metric

Shipping

  • Lifting Provision

Warranty

  • 1-Year Standard Warranty

Available Options

* Not all options are compatible with each other. Some options may require the purchase of additional options, or may include additional options at no charge. Please use our Build-&-Price tool to determine option compatibility, and configure your machine.

Automation Options

Designed for high-volume production and unattended operation for larger parts and tombstones, the EC-500/50 offers 50-taper power and a large work envelope with the smaller footprint of a 40-taper pallet-changing machine. It features fast rapids, full 4th-axis pallet indexing, and a rear-exit chip conveyor for efficient chip management.

  • Powerful 50-taper spindle for heavy cutting
  • Standard 50+1 tool side-mount tool changer
  • Built-in pallet changer with 500 mm pallets
  • Full 4th-axis indexing
  • Made in the USA



*Haas machines are designed to operate on 220 VAC power. An optional internal high-voltage transformer (380 - 480 VAC) is available for all models, except the Desktop Mill, CL-1, and CM-1. This optional high-voltage internal transformer is not field installable; it must be ordered with the machine.

ATTENTION! Optional high-performance spindles have a higher power requirement than the standard spindle. Verify the power requirement before running power for your machine.

VIDEOS

Recently Updated

EC-500/50 Spotlight


Have you been looking forward to seeing the Haas 50-taper EC-500/50 HMC in action? Then you’re in luck. In this excerpt from our HaasTec 2020 Live Stream, you’ll get to see some heavy cutting happening live, plus get lots of useful information about this heavy-hitter horizontal.

Recently Updated

Horizontal Mill: A Quick Overview


Whether you need a horizontal machining center for high-volume production and unattended operation or really big work cubes and maximum weight capacity, Haas has an HMC that should fit the bill. This video gives an overview of our pallet changing mills, large-frame HMCs, and five-axis horizontal mills.

RELATED PRODUCTS

40-Taper Version

Haas EC-500

EC-500

500 mm Twin-Pallet HMC with 32" x 25" x 28" travels

  • 40 Taper
  • 4 Axis
  • 8.1k RPM
  • 30+1 Tool Capacity
    CNY ONLY
Learn More Build & Price

Vertical Approach

Haas VF-3YT50

VF-3YT/50

CNC Vertical Mill with 40" x 26" x 25" travels

  • 50 Taper
  • 3 Axis
  • 7.5k RPM
  • 30+1 Tool Capacity
    CNY ONLY
Learn More Build & Price

Larger Work Envelope

Haas EC-1600

EC-1600

CNC Horizontal Mill with 64" x 50" x 32" travels

  • 50 Taper
  • 3 Axis
  • 7.5k RPM
  • 50+1 Tool Capacity
    CNY ONLY
Learn More Build & Price

Overview

The EC-500/50 adds a robust 50-taper spindle to our popular 500 mm pallet-changing horizontal machining center to create a high-performance HMC with 50-taper cutting ability in a smaller footprint.

Specification Comparison (Inch)

NOTE: Pre-production specifications and dimensions; subject to change without notice. NEW MODEL PREVIOUS MODEL
Axis Travels (X, Y, Z) 32" x 25" x 28" 32" x 20" x 28"
Optional Spindle Specifications (speed, power, taper) 10,000 rpm, 60 hp, 50T 12,000 rpm, 30 hp, 40T
Tool Changer Capacity 50+1 40+1
Optional Tool Changer Capacity N/A 70+1
Rapids (X, Y, Z) 1000 in/min 1000 in/min
Maximum Feedrate 500 in/min 500 in/min
90° Rotation Time 3 sec 5.5 sec
Maximum Weight on Pallet 880 lb 660 lb
Rotational Torque (Continuous) 424 ft-lb 300 ft-lb

Specification Comparison (Metric)

NOTE: Pre-production specifications and dimensions; subject to change without notice. NEW MODEL PREVIOUS MODEL
Axis Travels (X, Y, Z) 813 x 635 x 711 mm 813 x 508 x 711 mm
Optional Spindle Specifications (RPM, Hp, Taper) 10,000 rpm, 44.7 kW, 50T 12,000 rpm, 22.4 kW, 40T
Tool Changer Capacity 50+1 40+1
Optional Tool Changer Capacity N/A 70+1
Rapids (X, Y, Z) 25.4m/min 25.4 m/min
Maximum Feedrate 12.7 m/min 12.7 m/min
90° Rotation Time 3 sec 5.5 sec
Maximum Weight on Pallet 400 kg 300 kg
Rotational Torque (Continuous) 575 Nm 407 Nm

50-Taper Spindle

The EC-500/50 comes standard with our 7500-rpm 50-taper spindle, which uses a Haas-built two-speed gearbox to provide a wide constant horsepower band, good low-speed torque for heavy cuts, and higher torque throughout the range above 500 rpm.

For heavy cuts and high material-removal rates, a high-performance 7500-rpm spindle is also available. Powered by a 60 hp vector drive, this spindle provides higher power throughout the rpm range than the standard spindle. A 10,000-rpm, 60 hp spindle is also available.

  • 2-speed gearbox designed, manufactured, and built in-house
  • More power for larger diameter tools and tougher materials
  • Automatic High or Low gear selection, based on commanded rpm
  • User-programmable selection of High or Low gear via M-codes

Optional 7500-rpm, 60 Horsepower (44.7 kW) Peak Vector Drive Spindle CLICK HERE

Optional 10,000-rpm, 60 Horsepower (44.7 kW) Peak Vector Drive Spindle CLICK HERE





EC-500/50 Coolant Ring

The 4-nozzle coolant ring surrounding the spindle nose is perfectly positioned so that nozzles can be pointed at the shortest tools, and others can be positioned for longer tools. The compact, cylindrical design prevents chips from collecting on top. NOTE: The Haas Programmable Coolant Nozzle (P-COOL) is not available on the EC-500/50.

EC-500/50 Chip Management

The completely redesigned EC-500/50 has been improved from the ground up, with all new castings for increased rigidity, better cutting performance, 5 more inches of Y-axis travel, and vastly improved chip evacuation.

At the heart of the EC-500/50’s improved chip management system is a wider belt-type chip conveyor positioned in the center of the machine, directly under the spindle. The steep walls of the interior enclosure easily funnel chips to the conveyor.

The conveyor discharges chips at the height of a full-size industrial barrel. Washdown nozzles mounted in the ceiling are fed by a separate coolant pump, and allow you to direct coolant flow to areas where chips may gather, to further enhance chip evacuation.

EC-500/50 Pallet Schedule Table


In previous Haas pallet-changing machines, the G188 code was used to call a part program from the Pallet Schedule Table (PST), based on which pallet was loaded. Continuous operation was achieved by running a main program that consisted of an M50 to perform a pallet change, the G188 to call the program for the loaded pallet, and an M99 to loop the whole process. The M50 loaded the next scheduled pallet, and the G188 called the program designated for that pallet.

With the G188, however, if you restarted your machining process in the middle of one of the pallet programs, it didn’t allow you to get back to the main program to continue uninterrupted machining. You had to wait for your restarted program to finish, select your main program again, and then start your continuous cycle.

We developed a new M-code to solve this problem. The M199 is used at the end of a program. When the program is started by pressing [CYCLE START] in Memory mode, the M199 acts exactly like an M30 (Program End and Reset). But if the program is started by pressing [INSERT] while the Pallet Schedule Table is displayed, the M199 will command a pallet change to load the next scheduled pallet, and then run the program associated with that pallet. This allows the user to start machining on any pallet, and continue uninterrupted machining, as long as pallets are scheduled.

EC-500/50 Cycloidal Rotary Drive

The cycloidal rotary drive system – designed for machine tools and robotics – provides a great combination of speed, accuracy, and durability to the B axis. The rugged design provides long service life, with little or no maintenance, and is especially durable in a crash. The cycloidal rotary drive can be back driven to absorb energy from an impact. The shock-load capacity is 5 times the rated torque of the gearbox, and the entire gearbox is a simple drop-in replacement, should damage occur.

EC-500/50 Hydraulic Pallet-Clamping System

The hydraulic power unit provides power to clamp the pallets to the pallet receiver, as well as raise and lower the pallet-changer mechanism.

EC-500/50 Increased Axis Travels


An extra 5" (127 mm) of Y-axis travel can make all the difference in the world. Now, the spindle centerline can get 27.13" (689 mm) above the surface of the pallet.

EC-500/50 Stepped Base and Column

The stepped base and column design of the EC-500/50, where one X-axis linear guide rail is on a different horizontal plane than the other, increases the rigidity and stability of the spindle-head column assembly. With hydraulic pallet clamping and the stepped base/column design, the EC-500/50 is more rigid than ever, all the way to the top!

EC-500/50 Automatic Probe Riser


An automatic probe arm stores the tool setting probe in a protective compartment during machining operations. When the tool probe is needed, an M104 code activates the automatic probe arm to lift the probe and lock it into place. When probing is complete, an M105 retracts the probe to its protective compartment.

Travels S.A.E METRIC
X Axis 32.0 in 813 mm
Y Axis 25.0 in 635 mm
Z Axis 28.0 in 711 mm
Spindle Centerline to Pallet 1.10 in 28 mm
Spindle S.A.E METRIC
Max Rating 30.0 hp 22.4 kW
Max Speed 7500 rpm 7500 rpm
Max Torque 340.0 ft-lbf @ 700 rpm 460.0 Nm @ 700 rpm
Drive System 2-Speed Gearbox 2-Speed Gearbox
Taper CT or BT 50 CT or BT 50
Bearing Lubrication Air / Oil Injection Air / Oil Injection
Cooling Air Cooled Air Cooled
Integrated 4th Axis (B Axis) S.A.E METRIC
90° Rotation Time (full 4th) 3.0 s 3.0 s
Max Weight on Platter 880 lb 400.0 kg
Rotational Torque (continuous) 424 ft-lbf 575 Nm
Backlash 30 arc-sec 30 arc-sec
Gear Ratio 106:1 106:1
Brake Torque 2500 ft-lbf 3390 Nm
Min Resolution 0.001 ° 0.001 °
Indexing Accuracy ± 15 arc-sec ± 15 arc-sec
Repeatability 10 arc-sec 10 arc-sec
Rapids on B 150 °/sec 150 °/sec
Feedrates S.A.E METRIC
Max Cutting 500 ipm 12.7 m/min
Rapids on X 710 ipm 18.0 m/min
Rapids on Y 710 ipm 18.0 m/min
Rapids on Z 710 ipm 18.0 m/min
Axis Motors S.A.E METRIC
Max Thrust X 4054 lbf 18033 N
Max Thrust Y 2854 lbf 12695 N
Max Thrust Z 4054 lbf 18033 N
Pallet Changer S.A.E METRIC
Pallet Quantity 2 2
Pallet Length 19.69 in 500 mm
Pallet Width 19.69 in 500 mm
Max Part Diameter 29.5 in 749 mm
Max Pallet Load 880 lb 400.0 kg
Max Part Height 36.5 in 927 mm
Pallet Change Time 15 s 15 s
General S.A.E METRIC
Coolant Capacity 95 gal 360 L
Tool Changer S.A.E METRIC
Type SMTC SMTC
Capacity 50+1 50+1
Max Tool Diameter (full) 4.0 in 102 mm
Max Tool Diameter (adjacent empty) 8.0 in 203 mm
Max Tool Length (from gage line) 16 in 406 mm
Max Tool Weight 30 lb 13.6 kg
Tool-to-Tool (avg) 4.2 s 4.2 s
Chip-to-Chip (avg) 6.3 s 6.3 s
Air Requirements S.A.E METRIC
Air Required 9 scfm @ 100 psi 255 L/min @ 6.9 bar
Inline Air Hose 1/2 in 1/2 in
Coupler (Air) 1/2 in 1/2 in
Air Pressure Min 100 psi 6.9 bar
Electrical Specification S.A.E METRIC
Spindle Speed 7500 rpm 7500 rpm
Drive System 2-Speed Gearbox 2-Speed Gearbox
Spindle Power 30.0 hp 22.4 kW
Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
Full Load Amps (3 Phase) - Low 70 A 70 A
Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
Full Load Amps (3 Phase) - High* 35 A 35 A
Dimensions - Shipping S.A.E METRIC
Domestic Pallet 230 in x 126 in x 118 in 584 cm x 320 cm x 300 cm
Export Pallet 230 in x 126 in x 123 in 584 cm x 320 cm x 312 cm
Weight 26000 lb 11820.0 kg

Need More Information?

If you would like more information about how a new Haas machine can bring your products to life, please share your contact information.

Loading

All prices and specifications subject to change without notice. Freight, rigging, state & local taxes, vendor installation charges, and dealer installed accessories are not included. Not responsible for misprints or typographical errors. Machines shown with optional equipment. Actual product appearance may differ.

FIND DISTRIBUTOR
Feedback
Haas Logo

美元价格不包括关税、报关费用、保险费、增值税及运费。
USD prices DO NOT include customs duty, customs fees, insurance, VAT, or freight.

人民币价格包含关税、报关费用、货运保险和增值税, 但不包括运费。
CNY prices include customs duty, customs fees, insurance, and VAT. DOES NOT include freight.

Haas Delivered Price

This price includes shipping cost, export and import duties, insurance, and any other expenses incurred during shipping to a location in France agreed with you as a buyer. No other mandatory costs can be added to the delivery of a Haas CNC Product.

KEEP UP WITH THE LATEST HAAS TIPS AND TECHNOLOGY...

Sign up now!

HAAS TOOLING ACCEPTS THE FOLLOWING:

  • Service & Support
  • Owners
  • Request Service
  • Operator Manuals
  • Haas Parts
  • Rotary Repair Request
  • Pre-Install Guides
  • Shopping Tools
  • Build & Price a New Haas
  • Available Inventory
  • The Haas Price List
  • CNCA Financing
  • About Haas
  • Careers
  • Certifications & Safety
  • Contact Us
  • History
  • Terms & Conditions
  • Haas Tooling Terms & Conditions
  • Privacy
  • Warranty
  • Haas Community
  • Haas Certification Program
  • Haas Motorsports
  • Gene Haas Foundation
  • Haas Technical Education Community
  • Events
  • Join the Conversation
  • Facebook
  • Twitter
  • Flickr
  • YouTube
  • LinkedIn
  • Instagram
  • TikTok
© 2023 Haas Automation, Inc – CNC Machine Tools

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.


2800 Sturgis Rd., Oxnard, CA 93030 / Toll Free: 800-331-6746
Phone: 805-278-1800 / Fax: 805-278-2255

Cookie Notice

We use cookies to improve your user experience. Our Cookie Notice describes which cookies we use, why we use them, and how you can find more information about them. Please confirm you consent to us using analytics cookies. If you do not consent, you may still use our website with a reduced user experience.

Manage Settings

Cookie Notice

We use cookies to improve your user experience. Our Cookie Notice describes which cookies we use, why we use them, and how you can find more information about them. Please confirm you consent to us using analytics cookies. If you do not consent, you may still use our website with a reduced user experience.

Functional Cookies

Analytics Cookies
